Custom PVC Top Hung Windows | Australian Stadnard AS2047 | PVC Windows and Doors Manufacturer
Custom PVC Top Hung Windows | Australian Stadnard AS2047 | PVC Windows and Doors Manufacturer
Categories | UPVC Awning Windows |
---|---|
Brand | ROPO Custom Door and Window Solutions |
Model | RPAW03 |
PVC Frame | German VEKA |
Color | White / Woodgrain |
Hardware | German ROTO / Chinese KINLONG |
Glass | Single / Double / Triple / Laminated / Low E |
Screen | Retractable Screen / Accordion Screen. |
Rubber Strip | EPDM |
Reinforcement Steel | Above 1.50 mm |
Standard | AS2047, Codemark, NFRC |
Package | Bubble + Carton + Expandable Polyethylene |
FOB port | Fuzhou / Xiamen |
Terms of Payment | L/C, T/T |
Update Time | May 19,2024 |
Detail Information
Custom PVC Top Hung Windows Introduction

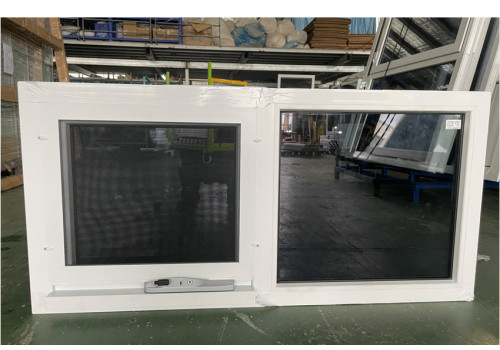

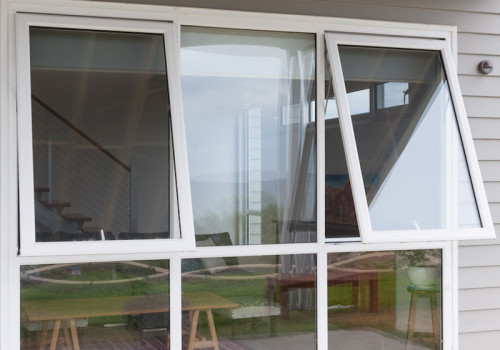

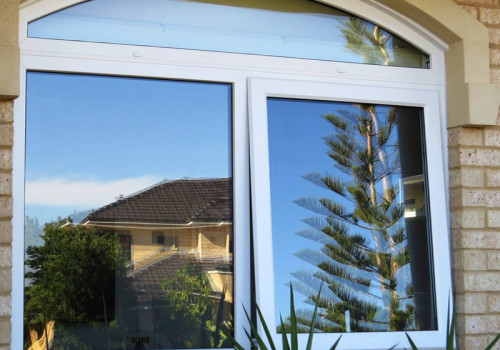

Custom PVC Top Hung Windows
Whether you need a window solution that can be configured perfectly to your wide opening space or customised in colour and design to complement your modern interior, top hung windows are your best bet! These windows are flexible in design and configuration. Hence, top hung windows can be configured easily according to your home design and performance requirements.
PVC Awning Windows Custom Configurations
Standard Features
● White color frame
● Fitted with double glazed-5 mm + 16 mm Argon Gas + 5 mm● Fitted with 1.50 mm reinforcement steel
● Fitted with multi-point locking system
● Fitted with keyless handles
● Min. size: 0.4m wide x 0.4m high
● Max. size: 1.2m wide x 2.0m high
Additional Options
● Lamination options (Golden Oak, Dark Oak, Black, etc)
● Triple Glazed / Laminated Glazed
● Low E Glass
● Glass options (tinted, toughened, reflective, obscure, etc.)
● Key lock handles
● Restrictor stay
● Retractable Screen
PVC Awning Windows PDF
PVC Awning Widnows Details
Veka Softline AD70
VEKA SOFTLINE AD70 casement system is VEKA's classic 2-Level gasket system. Optimized and easy automated window fabrication and a wide range of special profiles and add-on profiles make the AD70 the perfect choice for villas and other projects with the need for high variety of different window and door styles and designs. It supports very large window sizes including combination windows.
● System Uf 1.3 W/m2.K (including steel reinforcements)
● System depth 70mm – 5 Chambers
● Glazing thick 21mm – 35mm
● Glazing depth 21mm
● Profile wall thickness : 2.80 mm
● Low-energy-house ready
● Lead Free
● Tropical Mix
Corner Joint
Fusion welded frame and sash corners for strength and durable.
Corner cleaning makes the window frame & sash more beautiful appearance and good looking.
PVC Awning Windows Hardware
Locking System
Heavy duty hinge with 304 stainless steel for maximum durability.
Multi-point stainless steel locking device for enhanced security.
