Aluminium Windows Supplier, Custom Aluminum Single Hung Sash Windows, American Style, Colonial Bar, For Living Room, Bedroom, Kitchen

Aluminium Windows Supplier, Custom Aluminum Single Hung Sash Windows, American Style, Colonial Bar, For Living Room, Bedroom, Kitchen
Aluminium Windows Supplier, Custom Aluminum Single Hung Sash Windows, American Style, Colonial Bar, For Living Room, Bedroom, KitchenAluminium Windows Supplier, Custom Aluminum Single Hung Sash Windows, American Style, Colonial Bar, For Living Room, Bedroom, KitchenAluminium Windows Supplier, Custom Aluminum Single Hung Sash Windows, American Style, Colonial Bar, For Living Room, Bedroom, Kitchen
Share
CategoriesAluminum Single Hung Windows
BrandROPO Custom Door and Window Solutions
Product SpecificationsAluminum Single Hung Windows 003
Profile ColorWhite / Black / Grey / Customized Color
Profile BrandJMA 6063-T5
HardwareU.S. CALDWELL
GlassSingle / Double / Triple / Laminated / Low E
ScreenFixed
FOB portFuzhou / Xiamen
Terms of PaymentL/C, T/T
Detail Information
Custom Aluminium Windows · American Style

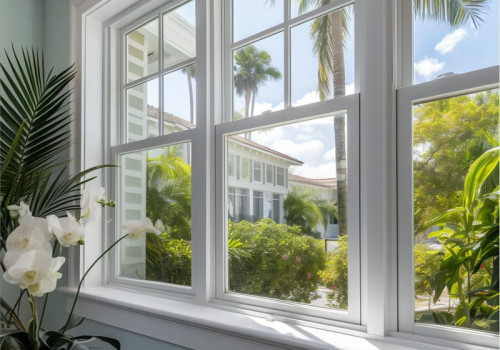

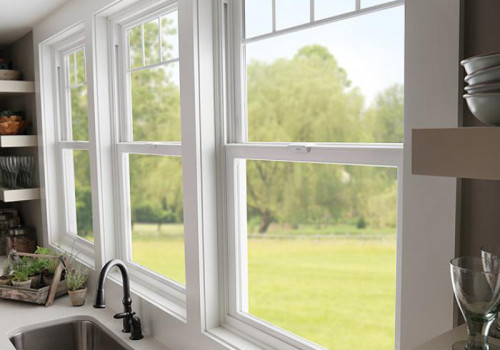

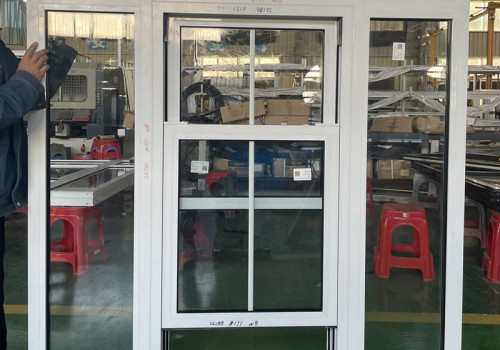

Aluminum Single Hung Window Sash — American Style Colonial Bar

This aluminum single hung window is made for living rooms, bedrooms and kitchens, in American style with a colonial bar. The bottom sash is the only moving part, and the window is published at 600 Pa water penetration resistance and 2000 Pa ultimate wind pressure. As an aluminum sash window it opens vertically inside its own frame, so it adds light and air without taking a single millimetre of interior space.

600 PaWater pressure
2000 PaUltimate wind pressure
2.5U value
0.36SHGC value
  • Security. Single hung windows have one lock and one way of opening. Because they open in only one direction, the locking system has less chance of failing, and with a single lock you are more likely to remember to lock it — which is what makes single hung windows the more secure option.
  • Save space. Because they do not open outward and take up no interior space, they add sunlight and breeze to a room without sacrificing floor area — so smaller rooms such as bathrooms and guest rooms, and tight, high-traffic spaces such as hallways and entryways, feel bigger.
  • Aesthetic and versatility. Second-floor bedrooms and bathrooms suit them best, since heat rises in a house: the tilt position lets hot air escape and keeps the home cool while preventing freezing air from blowing through it, so you get ventilation and air quality without the draught.
  • Built to stay weathertight. EPDM rubber strip, DOW silicone sealant and stainless steel screws throughout, with a heavy-duty 304 stainless steel hinge and a multi-point stainless steel lock.
  • Easy to re-glaze. Every pane is held by a glass bead rather than bedded in silicone, so if a pane is broken it can be replaced without remaking the sash.

At a glance

Profile / material
Aluminium 6063-T5, JMA Window System, multi-chambered
Glass configuration
Single / Double / Triple / Laminated / Low-E
Available dimensions
Opening width ≤ 1100 mm, height < 2200 mm per panel
Key performance
600 Pa water · 2000 Pa wind · U 2.5 · SHGC 0.36

Definition

What Is a Single Hung Sash Window?

A single hung sash window carries two sashes in one frame: the upper sash is fixed, and only the lower sash travels. That one moving sash is what separates it from a double hung window, where both sashes operate, and from a casement, which swings outward on a crank. Because nothing projects past the frame, the window works inside the depth of the wall — which is why aluminium sash windows of this type suit narrow reveals, corridors and elevations that cannot spare swing clearance.

On this American style window the lower sash moves within the frame on heavy-duty 304 stainless steel hardware, closes onto an EPDM rubber strip, and locks with a multi-point stainless steel lock — the details that hold the 600 Pa water and 2000 Pa wind figures published for this model. In British English the same window is ordered as an aluminium sash window or an aluminium window sash; the profile, glazing and hardware are identical, only the spelling differs.

Technical data

Aluminum Single Hung Window Sash Specifications

Aluminum sash window specifications — Model 003
Product type / modelAluminium single hung window (vertical slider) — American style with colonial bar. Model Aluminum Single Hung Windows 003, group: Aluminum Single Hung Windows
Profile brand and alloyJMA Window System, aluminium 6063-T5
Profile depthStandard Aluminum: 100 mm, Thermal Break: 115 mm
Profile wall thickness1.60 mm
Frame constructionMulti-chambered frame with sealed, mechanically joined corners
Surface finishInterpon Powder Coating / PVDF / Anodized / Woodgrain
Profile coloursWhite / Black / Grey / Customized Color
Glass optionsSingle / Double / Triple / Laminated / Low-E
Glazing methodGlass bead glazing — all glass sealed by glass bead, not silicone, so a broken pane is easy to replace
Sealing and fastenersEPDM rubber strip · U.S.A. brand DOW silicone sealant · stainless steel screws throughout
HardwareU.S. Caldwell
Insect screenFixed
Water penetration resistance600 Pa
Ultimate wind pressure2000 Pa
Thermal performanceU value 2.5 · SHGC 0.36
Recommended panel sizeOne-panel opening width limited to 1100 mm, height better kept under 2200 mm; where width exceeds 1200 mm, a double-panel style or a fixed-panel combination is recommended

Profile and hardware

Aluminium Sash Windows: Profile and Hardware

Explore the aluminium profile system, four key weather-sealing features, durable hardware, and recommended sash sizes engineered for smooth operation, reliable weather resistance, and long-term performance.

Aluminum Single Hung Window Corner Profile

Profile

Engineered with high-quality JMA 6063-T5 aluminum profiles, available in a range of surface finishes, including German Interpon (AkzoNobel) powder coating, anodized finishes, marine-grade PVDF coating, and woodgrain finishes. ROPO also offers energy-efficient thermally broken aluminum systems for enhanced thermal insulation and performance.

Aluminum Single Hung Window Details

Details

  1. Silicone sealant — U.S.A. brand DOW silicone.
  2. Glass bead — all glass is sealed by glass bead, not silicone, so if the glass is broken it is easy to change.
  3. Rubber strip — EPDM, for a good seal, with a 10-year warranty.
  4. Screws — all stainless steel, to resist corrosion.
Aluminum Single Hung Window Hardware

US Caldwell Locking System

Three locking points on one meeting rail — sealed, secure, serviceable.

  • Twin sash keepers — Seat the sash evenly along the rail
  • Centre cam lock — Single-hand operation, positive lock
  • US Caldwell — American window hardware system
Popular Design Options
Download PDF

Possible single hung window / fixed (F) window configurations

  • The aluminium single hung window can be designed combined with a fixed window.
  • One-panel single hung opening width should be limited to 1100 mm, and the window height is better kept smaller than 2200 mm for the best experience and durability.
  • If the single hung window width is larger than 1200 mm, we suggest a double-panel style or combining it with a fixed panel.

See it working

Watch the Aluminum Sash Window in Operation

The three reasons buyers specify a single hung window over any other opening type — security, saved space and ventilation on upper floors — are shown in the video and set out beside it.

Security

One lock, one opening direction — fewer points to fail and nothing to forget.

Save space

No outward swing, so it adds light and air without taking up floor space.

Aesthetic and versatility

Best on upper floors — lets rising warm air out without wind blowing through.

Compliance

Certifications and Compliance for Aluminum Single Hung Windows

ROPO publishes the certificates that matter to specifiers in Australia, New Zealand and North America. Each certificate below is linked to ROPO's own certificate record, and each one is product- and configuration-specific — confirm that your specification falls inside the certificate scope before ordering.

Australia

AS 2047-2014 — Windows and External Glazed Doors in Buildings

The primary Australian performance standard for windows: serviceability design pressure, operating force, air infiltration, water penetration resistance, ultimate strength and deflection. ROPO's certificate is tested to the AS/NZS 4420.1-2016 methods.

Certificate record
AS 2047-2014 — Windows and Doors
Expiration
Oct 29, 2025 – Oct 9, 2030
Certification body
As listed on the certificate record
View the AS 2047-2014 certificate record
North American

NAFS and NFRC — North American Window Certification

NAFS (AAMA/WDMA/CSA 101/I.S.2/A440) rates structural performance, water penetration resistance, air leakage and operating force for the North American market. NFRC rates the thermal performance of the same tested assembly — U-factor, solar heat gain coefficient and visible transmittance — so a window can be compared on energy performance as well as on weathertightness.

Relevant standards
NAFS (AAMA/WDMA/CSA 101/I.S.2/A440); NFRC
Certificate record
Confirmed at quotation stage
View the NAFS and NFRC records in the certificate library
New Zealand

CodeMark — Aluminium Windows and Doors (NZBC)

New Zealand CodeMark certifies compliance with cited clauses of the New Zealand Building Code, covering structural performance, durability, external moisture and building material safety. Building Consent Authorities must accept a current CodeMark certificate as evidence of compliance where the product is selected and installed within the certificate's scope and limitations.

Certificate record
CodeMark Certified Aluminium Windows and Doors
Certification body
Bureau Veritas Australia Pty Ltd
View the CodeMark aluminium certificate record
Australia

AGWA Accredited Compliance — AS 2047 Windows and Doors

ROPO is recognised under the Australian Glass & Window Association Accredited Compliance programme, which ties manufacturing to the details recorded on the AS 2047 test reports, with independent NATA-accredited third-party testing of member products.

Certificate record
AGWA Accredited Compliance
Certification body
AGWA Limited
Relevant standard
AS 2047
View the AGWA Accredited Compliance record

Applications

Where These Aluminum Single Hung Windows Are Specified

Five situations where a vertically opening window with one moving sash does the job better than a casement or a slider — and what makes it suitable in each one.

01

American-style residential builds

American style windows are drawn around a colonial bar grid and vertical sash proportions — the detail North American elevations are built from. JMA 6063-T5 profile, 304 stainless hardware and a U.S. Caldwell hardware option keep the specification familiar to builders working to American detailing, and single hung sashes combine with fixed (F) panels where an elevation needs more glass than one operable panel should carry. In Australia the same elevation is ordered as aluminium colonial windows on the same 1100 mm / 2200 mm panel rules, and aluminium sash windows Australia-wide are specified against AS 2047.

02

Apartments and multi-residential developments

Single hung aluminum windows never project past the frame: a sash that travels inside the frame opens without reaching over a balcony, a walkway or a neighbouring unit, which keeps facade lines clean across a repeated elevation and removes the swing clearance a casement needs.

03

Bathrooms, guest rooms, hallways and entryways

Small, high-traffic spaces gain light and ventilation without losing floor area or circulation space, because the window takes up no interior room and opens inward within its own depth.

04

Second-floor bedrooms and bathrooms

Heat rises, so an opening on an upper level is the most effective exhaust point in the house. For aluminum hung windows this part-open position releases hot air while limiting the direct draught of a fully open sash.

05

Renovation and window replacement

Glass bead glazing means a broken or damaged pane is replaced on site without remaking the sash, and the standard 1100 mm / 2200 mm panel rules keep the replacement inside the sizes the profile performs best at.

Regional supply. ROPO supplies aluminium sash windows to Australian projects through ROPO Australia, to New Zealand consented work through ROPO New Zealand, and to US and Canadian projects through the same factory channel. The sash windows NZ projects order are documented against the CodeMark scope before shipment, and Australian orders against AS 2047 — in both cases the certificate scope is confirmed against your drawing before the order is placed.

Compare

Colonial Bar Aluminum Sash Windows vs Aluminum Double Hung Windows vs Aluminum Sliding Windows

Compare three popular aluminum window styles by their opening mechanisms, ventilation options, profile systems, hardware, design features, and typical applications. Colonial bar sash windows offer a traditional grid-style appearance, while double hung and sliding windows provide different ventilation and operating options. Explore the key differences to select the right window system for your residential or commercial project.

Colonial bar aluminum sash windows vs aluminum double hung windows vs aluminum sliding windows
Features This product — Colonial Bar Aluminum Sash Windows Aluminum Double Hung Windows Aluminum Sliding Windows
Window Design Traditional colonial grid pattern Classic vertical sash design Modern horizontal sliding design
Opening Mechanism Vertical sliding, single-hung configuration Vertical sliding, both sashes operable Horizontal sliding panels
Ventilation Ventilation through lower sash Flexible top and bottom ventilation Adjustable side ventilation
Profile Material 6063-T5 Aluminum Alloy 6063-T5 Aluminum Alloy 6063-T5 Aluminum Alloy
Hardware Sash balances, locks and handles Sash balances, locks and handles Rollers, locks and handles
Glazing Options Single or double glazing, Low-E options Single or double glazing, Low-E options Single or double glazing, Low-E options
Design Features Colonial decorative glazing bars Clean vertical sash appearance Large glass panels and slim sightlines
Space Efficiency No outward opening clearance No outward opening clearance No outward opening clearance
Typical Applications Heritage-style homes, villas, traditional residences, renovation projects Residential homes, apartments, bedrooms, traditional-style buildings Modern villas, apartments, hotels, commercial buildings
Key Advantages Traditional aesthetics with decorative colonial grids Flexible ventilation and classic styling Smooth operation, space-saving design and wider configurations

Need both sashes to operate? See the Double Hung Window range or the same American-style profile as an aluminium double hung window (Model 002), which shares this window's JMA 6063-T5 profile, colour range, glass range, screen options and hardware brands. Browse all aluminium single hung windows in this group.

Buying from ROPO

Custom Single Hung Window Manufacturer — OEM, Wholesale and Project Supply

ROPO is an aluminium window manufacturer in Fuzhou, China, supplying wholesalers, builders, developers and project contractors with custom single hung sash windows built to one confirmed specification.

1 PCSMinimum order quantity
YesSamples available
14 daysSample development
35–50 daysProduction lead time

A. Procurement information

Supply position
Manufacturer direct — aluminium window factory, Fuzhou, China
Order types
Project supply · wholesale / bulk · OEM · dealer partnerships
What to send
Opening schedule or bill of quantities, elevations, glass and colour specification
Customisation
Sizes, colours, glass build-up, screens, fixed + hung combinations

Sampling follows drawing approval; final quantities and dates are confirmed against your drawings before the order is placed.

B. OEM / ODM process

1Drawings confirmedDrawings, dimensions, material, colour, glass and hardware reviewed before anything is cut.
2Sample approvedA sample or pre-production unit is built to your project and signed off before the batch runs.
3Production and inspectionProduction follows the approved specification, with inspection against it before packing.
4Packing and shipmentProtected packaging, container loading and freight to your port.

C. Customisation options

  • Batch-level customisation — one confirmed specification per order, so every window in the shipment matches the approved sample and colour.
  • Configurations — single hung alone, or combined with fixed (F) panels; panels over 1200 mm wide built as double panel or fixed plus hung.
Standard features and additional options
Standard featuresAdditional options
  • Interpon powder-coated aluminium frame
  • Double glazing 5 mm + 12 mm argon + 5 mm
  • Non-thermally broken aluminium frame
  • Balance bar fitted
  • Keyless handles fitted
  • Fixed fiberglass flyscreen
  • Minimum size 0.40 m wide × 0.50 m high
  • Maximum size 1.10 m wide × 2.20 m high
  • Anodised, PVDF or woodgrain finish
  • Triple or laminated glazing
  • Glass options — tinted, toughened, reflective, obscure
  • Thermally broken aluminium frame
  • Low-E glass
  • Tilt lock
  • Restrictor stay
  • Security screen

Colours: white, black, grey or customized, powder coated by Interpon — over 100 colours, one tone inside and out or two different tones. See aluminium frame colours and finishes.

D. Packaging and shipping

  • EPE and foam protection at corners and sash edges
  • Bubble wrap and carton protection around frames and hardware
  • Export palletising and container loading for sea freight
  • Packing configuration confirmed per order — panel size, glass build-up and container mix change what protection is needed

Brochures and general technical files are in the download centre.

E. Warranty and after-sales

ComponentCovered failureWarranty
Window / door frame — aluminium JMAColour faded, corner break, frame out of shape10 years
Hardware — German brandHardware rusty, hardware damaged10 years
Hardware — U.S. CaldwellHardware rusty, hardware damaged6 years
Hardware — Chinese brandHardware rusty, hardware damaged6 years
GlassGlass foggy10 years
Insect screen — fixedMesh damaged, hardware damaged3 years
  • Frame and powder-coat warranty is 10 years, as stated in the Profile card above.
  • Hardware warranty follows the brand fitted — U.S. Caldwell or Chinese top brand 6 years, German brand 10 years.
  • ROPO certifies materials and workmanship only; installation and correct use remain with the builder or installer, and glass breakage from human factors or severe weather is not covered.
  • After-sales is handled through your ROPO sales contact, under the published warranty terms.

Full terms: published warranty list · installation guidance

FAQ

Aluminum Single Hung Window FAQ

Eight questions buyers ask before a project quote. Each answer starts with the direct answer.

Can this aluminum single hung window be customised to different sizes?

Yes — within the panel rules the profile performs best at. One-panel single hung sash window opening width should be limited to 1100 mm and the height kept under 2200 mm. If the width exceeds 1200 mm, we recommend a double-panel style or combining the sash with a fixed panel.

Send your opening sizes and elevation and we will return a configuration that holds to those limits.

What colours and finishes are available?

White, black, grey or a customized colour, powder coated by Interpon (AkzoNobel) for UV resistance. Black single hung windows sit inside that standard range, not outside it. ROPO's aluminium range covers more than 100 colours, in a single tone inside and out or two different tones for interior and exterior.

If your colour is not in the range, send a physical sample and we will match it. See aluminium frame colours and finishes.

What glass options do single hung aluminum windows take?

Single, double, triple, laminated or Low-E glass. All glass is sealed with a glass bead rather than bedded in silicone, so a damaged pane can be replaced without remaking the sash.

The glass build-up itself is selected against three requirements: thermal insulation, sound insulation and safety. Glass thickness for your panel size follows AS 1288 where that standard applies to the project.

What performance figures are published for this window?

600 Pa water penetration resistance, 2000 Pa ultimate wind pressure, U value 2.5 and SHGC 0.36 — the specification published for this model.

Those values are configuration-dependent. Test conditions, the glass build-up they were measured with and the test standard are confirmed at quotation stage, and test reports can be requested for your specific configuration.

Do you supply aluminium sash windows NZ and Australian projects can specify?

Yes — the same window goes to Australian projects under AS 2047 and to NZ consented work under CodeMark. ROPO holds AS 2047-2014, AS 1288, CodeMark (New Zealand) and AGWA Accredited Compliance records for aluminium windows and doors. The AS 2047-2014 certificate record runs from Oct 29, 2025 to Oct 9, 2030, and the CodeMark aluminium certificate is issued by Bureau Veritas Australia Pty Ltd.

NZ consented work is checked against the CodeMark scope before quotation, and Australian orders against AS 2047. Certification scope is product- and configuration-specific, so confirm that your sizes, glass and opening configuration fall inside it — we will confirm this against your drawing. Details are in the certification section above.

What is the minimum order quantity, sample time and production lead time?

These are confirmed per project rather than published as fixed figures. They depend on panel count, sizes, glass build-up, colour and hardware selection.

The sequence is fixed: drawings and requirements confirmed first, then sample or pre-production configuration approved, then production and inspection, then export packing and shipment. Give us the project scope and we will return the quantity, sampling and lead-time position in writing.

How are the windows packaged for international sea freight?

EPE and foam protection, bubble wrap, carton protection, export pallets and container loading.

The exact packing configuration is agreed per order, because panel size, glass weight and container mix change what protection the shipment needs — we do not apply one packing specification to every order.

What warranty comes with the aluminum single hung window?

10 years on the aluminium JMA frame, 10 years on glass against fogging, 10 years on German-brand hardware, or 6 years on U.S. Caldwell and Chinese-brand hardware, and 3 years on insect screens. EPDM rubber strip carries a 10-year warranty.

ROPO certifies the workmanship of materials; installation and correct use are the builder's or installer's responsibility, and glass breakage from human factors or strong weather is excluded. See the published warranty list.

More general questions about ROPO windows and doors are answered in the windows & doors FAQ.

Send Us Your Drawing for a Custom Aluminum Single Hung Window

Panel sizes, glass build-up, colour, hardware and the certificate scope for your project, answered in one reply. Nothing here is a stock item; every window is made to your dimensions.

Review
  • 加载中···

Contact ROPO Windows|Start Your Project Today

We provide a one-stop custom window and door solution to ensure the timely and budgeted delivery of high-quality and valuable products.

ROPO has an experienced service team that quickly provides custom window and door solutions, ensuring a worry-free after-sales experience.

*Email
*Name
*Phone
*Title
*Content
Upload
  • Only supports .rar/.zip/.jpg/.png/.gif/.doc/.xls/.pdf, maximum 20MB.
Categories
Contact Person
Benson
Full Name:
Benson
Tel:

+86 591-87147106

Email:
sales@ropowindows.com
WhatsApp:
8615980112550
Address:
Address: No. 1 Phase, Tieling Technical And Economic Development Zone, Minhou County, Fuzhou City, Fujian Province, China
