German Aluminium Tilt Turn Windows Supplier, Tilt In Windows, Australian Standard, Thermally Broken, Ventilation, For Bedroom, Kitchen

German Aluminium Tilt Turn Windows Supplier, Tilt In Windows, Australian Standard, Thermally Broken, Ventilation, For Bedroom, Kitchen

German Aluminium Tilt Turn Windows Supplier, Tilt In Windows, Australian Standard, Thermally Broken, Ventilation, For Bedroom, Kitchen
German Aluminium Tilt Turn Windows Supplier, Tilt In Windows, Australian Standard, Thermally Broken, Ventilation, For Bedroom, KitchenGerman Aluminium Tilt Turn Windows Supplier, Tilt In Windows, Australian Standard, Thermally Broken, Ventilation, For Bedroom, KitchenGerman Aluminium Tilt Turn Windows Supplier, Tilt In Windows, Australian Standard, Thermally Broken, Ventilation, For Bedroom, Kitchen
CategoriesAluminum Tilt Windows
BrandROPO Custom Door and Window Solutions
ModelAluminum Tilt Windows 003
Profile ColorWhite /Black / Grey / Customized Color
Profile BrandJMA 6063-T5
HardwareGerman ROTO / Siegenia Aubi
GlassSingle / Double / Triple / Laminated / Low E
ScreenFixed Screen / Accordion Screen
FOB portFuzhou / Xiamen
Terms of PaymentL/C, T/T
Update TimeOct 13,2024
Detail Information
Product Introduction

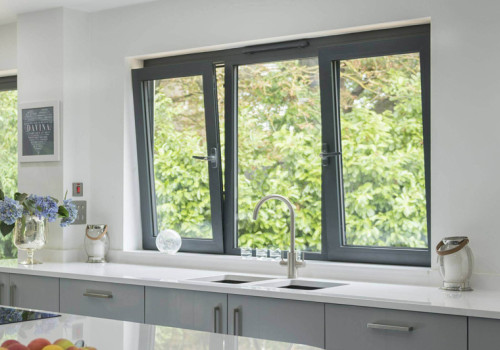

Tilt Windows


Tilt windows are a type of window that can be tilting the top of the sash towards to allow ventilation without opening the window fully. It is also suitable for children's rooms, providing safety for children.

  •  600Pa

    Water Pressure
  •  1500Pa

    Ultimate Wind Pressure
  • 2.5

    U Value
  • 0.24

    SHGC Value
Thermally Broken Aluminum Tilt and Turn Window
Product Video

Ventilation:

One of the most obvious benefits of tilt and turn windows is the varied types of ventilation possible. The tilt function allows for top ventilation, easily enabling hot air to quickly escape through the top portion of the window.

Easy to Clean:

It’s rare when a window can make cleaning easier. With the window placed in the turn position, you can safely clean the exterior of your windows while inside your home.

Better Air-Seals:

The performance of a tilt and turn window is one of the less obvious ways this window is superior to its competition. Better air seals yield a tighter seal, creating an air-tight window.

Product PDF
Aluminum Tilt and Turn Window Drawing Section
Aluminum Tilt and Turn Window Intertek Report
Product Details Map
Corner Profile :

Multi-chambered frame, JMA Window System (http://www.jma.cn/en/index.php ), 6063-T5, and The Powder Coating is from German Interpon (AkzoNobe Group) (https://www.interpon.com/cn ) for UV resistance. 10 Years Warranty.
Thermally Broken Aluminum Tilt and Turn Window Corner Profile
Thermally Broken Aluminum Tilt and Turn Window Details
Tilt and Turn Details :

1, Silicon Sealant-U.S.A Brand DOW CONING
2, Glass Bead- All glass sealed by glass bead, not silicone. so if the glass is broken, it is easy to change.
3, Rubber strip is EPDM for good sealent and 10 years warranty.
4, All screwn is stainless steel to resist corrosion

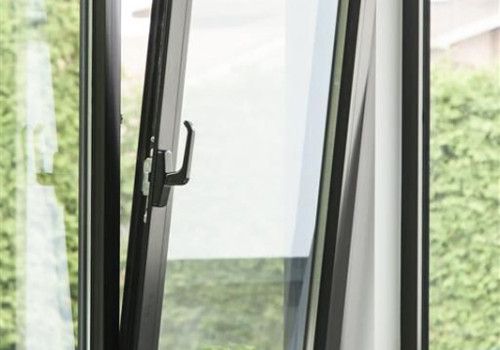

Thermally Broken Aluminum Tilt and Turn Window Hardware
Tilt and Turn Hardware :
Heavy duty hinge with 304 stainless steel for maximum durability.
Multi-point stainless steel locking device for enhanced security.
Thermally Broken Aluminum Tilt and Turn Window Configurations
Possible Tilt and Turn/Fixed (F) Window Configurations :

Aluminum Tilt and Turn window can be designed with fixed window combined.
One panel tilt and turn window opening width should be limited in 1000mm, the window height is better smaller than 1800mm for maximum using experience and durable.
If the tilt and turn window width bigger than 1200mm, we suggest double panels style or with fixed style.
Glass Should Be Selected On The Basis Of Thermal Insulation Requirement, Sound Insulation Requirement And Safety Requirement.
Click to jump
The color should be selected according to the customization requirements, click to jump to the color interface
Click to jump
