PVC Double Glazed Windows Factory | Triple Glazed | PVC Tilt & Turn Windows with Flyscreen
PVC Double Glazed Windows Factory | Triple Glazed | PVC Tilt & Turn Windows with Flyscreen
| Categories | UPVC Tilt & Turn Windows |
|---|---|
| Brand | ROPO Custom Door and Window Solutions |
| Model | RPTT02 |
| PVC Frame | German VEKA |
| Color | White / Woodgrain |
| Hardware | German ROTO / Chinese KINLONG |
| Glass | Single / Double / Triple / Laminated / Low E |
| Screen | Retractable Screen / Accordion Screen. |
| Rubber Strip | EPDM |
| Reinforcement Steel | Above 1.50 mm |
| Standard | AS2047, Codemark, NFRC |
| Package | Bubble + Carton + Expandable Polyethylene |
| FOB port | Fuzhou / Xiamen |
| Terms of Payment | L/C, T/T |
| Update Time | May 14,2024 |
Detail Information
Product Introduction

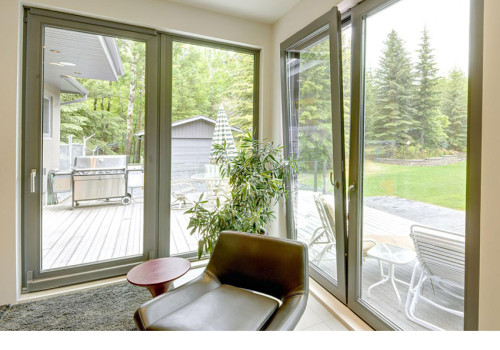

PVC Tilt & Turn Windows
ROPO Tilt & Turn Windows use revolutionary European hardware which allows both a tilt in and an opening (turn) function. Our most cost-effective option, the Tilt and Turn Window allows secure night time ventilation with the tilt function – while also giving you as much ventilation as a sliding or louvre window by via the turn function.
With multi-point locking, double and triple glazing and double or triple compression seals, the Tilt and Turn Window can seal to a Passive House standard. It’s a stylish, innovative option for your home which will reduce external noise, slash your energy bills and help you maintain a comfortable temperature all year round.
uPVC Tilt & Turn Windows Custom Configurations
Standard Features
● White color frame
● Fitted with double glazed-5 mm + 16 mm Argon Gas + 5 mm● Fitted with 1.50 mm reinforcement steel
● Fitted with multi-point locking system
● Fitted with keyless handles
● Min. size: 0.4m wide x 0.4m high
● Max. size: 1.3m wide x 2.7m high
Additional Options
● Lamination options (Golden Oak, Dark Oak, Black, etc)
● Triple Glazed / Laminated Glazed
● Low E Glass
● Glass options (tinted, toughened, reflective, obscure, etc.)
● Key lock handles
● Restrictor stay
● Fixed Screen
Product PDF
Product Details
Veka Softline AD70
VEKA SOFTLINE AD70 casement system is VEKA's classic 2-Level gasket system. Optimized and easy automated window fabrication and a wide range of special profiles and add-on profiles make the AD70 the perfect choice for villas and other projects with the need for high variety of different window and door styles and designs. It supports very large window sizes including combination windows.
● System Uf 1.3 W/m2.K (including steel reinforcements)
● System depth 70mm – 5 Chambers
● Glazing thick 21mm – 35mm
● Glazing depth 21mm
● Profile wall thickness : 2.80 mm
● Low-energy-house ready
● Lead Free
● Tropical Mix
Corner Joint
Fusion welded frame and sash corners for strength and durable.
Corner cleaning makes the window frame & sash more beautiful appearance and good looking.
