Custom Hurricane Impact Windows | Miani Dade Certificate | Vinyl PVC Handcrank Windows
Custom Hurricane Impact Windows | Miani Dade Certificate | Vinyl PVC Handcrank Windows
| Categories | UPVC Hand Crank Windows |
|---|---|
| Brand | ROPO Custom Door and Window Solutions |
| Model | RPHC02 |
| PVC Frame | German VEKA |
| Color | White / Woodgrain |
| Hardware | German ROTO / Chinese KINLONG |
| Glass | Single / Double / Triple / Laminated / Low E |
| Screen | Retractable Screen / Accordion Screen. |
| Rubber Strip | EPDM |
| Reinforcement Steel | Above 1.50 mm |
| Standard | AS2047, Codemark, NFRC |
| Package | Bubble + Carton + Expandable Polyethylene |
| FOB port | Fuzhou / Xiamen |
| Terms of Payment | L/C, T/T |
| Update Time | May 14,2024 |
Detail Information
Product Introduction
Vinyl PVC Hand crank Windows

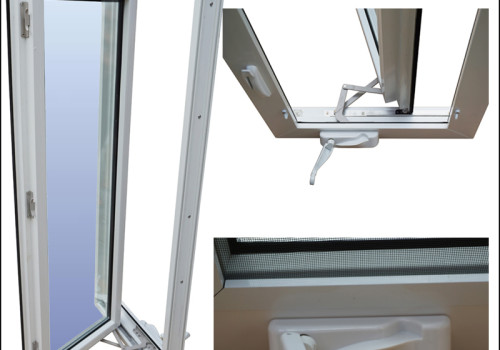

A casement window is hinged on one side and swings outward to the left or right. It easily opens and closes with a crank that folds away when not in use or an Easy-Slide Operator that uses the same simple motion as dimming the lights with a dimmer switch.
When closed, casement windows offer excellent energy efficiency. When open, they capture natural breezes that make rooms especially refreshing. When screens are added, they are located on the interior, keeping them from interfering with the operation of the window and protecting them from the elements to help them stay clean longer.
uPVC Crank-Out Windows Custom Configurations
Standard Features
● White color frame
● Fitted with double glazed-5 mm + 16 mm Argon Gas + 5 mm● Fitted with 1.50 mm reinforcement steel
● Fitted with multi-point locking system
● Fitted with keyless handles
● Min. size: 0.4m wide x 0.4m high
● Max. size: 1.2m wide x 1.8m high
Additional Options
● Lamination options (Golden Oak, Dark Oak, Black, etc)
● Triple Glazed / Laminated Glazed
● Low E Glass
● Glass options (tinted, toughened, reflective, obscure, etc.)
● Key lock handles
● Restrictor stay
● Fixed Screen
Product PDF
Product Details
Veka Softline AD70
VEKA SOFTLINE AD70 casement system is VEKA's classic 2-Level gasket system. Optimized and easy automated window fabrication and a wide range of special profiles and add-on profiles make the AD70 the perfect choice for villas and other projects with the need for high variety of different window and door styles and designs. It supports very large window sizes including combination windows.
● System Uf 1.3 W/m2.K (including steel reinforcements)
● System depth 70mm – 5 Chambers
● Glazing thick 21mm – 35mm
● Glazing depth 21mm
● Profile wall thickness : 2.80 mm
● Low-energy-house ready
● Lead Free
● Tropical Mix
Corner Joint
Fusion welded frame and sash corners for strength and durable.
Corner cleaning makes the window frame & sash more beautiful appearance and good looking.
Product Video
- Glass Should Be Selected On The Basis Of Thermal Insulation Requirement, Sound Insulation Requirement And Safety Requirement.
- Click to jump
- The color should be selected according to the customization requirements, click to jump to the color interface
- Click to jump
