Thermally Broken Aluminium Windows and Doors in Melbourne
Thermally Broken Aluminium Windows and Doors in Melbourne
Thermally Broken Aluminum Windows in Melbourne
The Project is Located Frankston, Melbourne, Australia
Completion Time: 2023
Profile: Thermally Broken Aluminum
Color: Powder Coating Black
Locking System: Australia Doric
Glass: 5 mm Low E + 16 mm Argon Gas + 5 mm Clear
Flyscreen: Fixed & Security
U Value: 2.50-2.90
Project Showcase

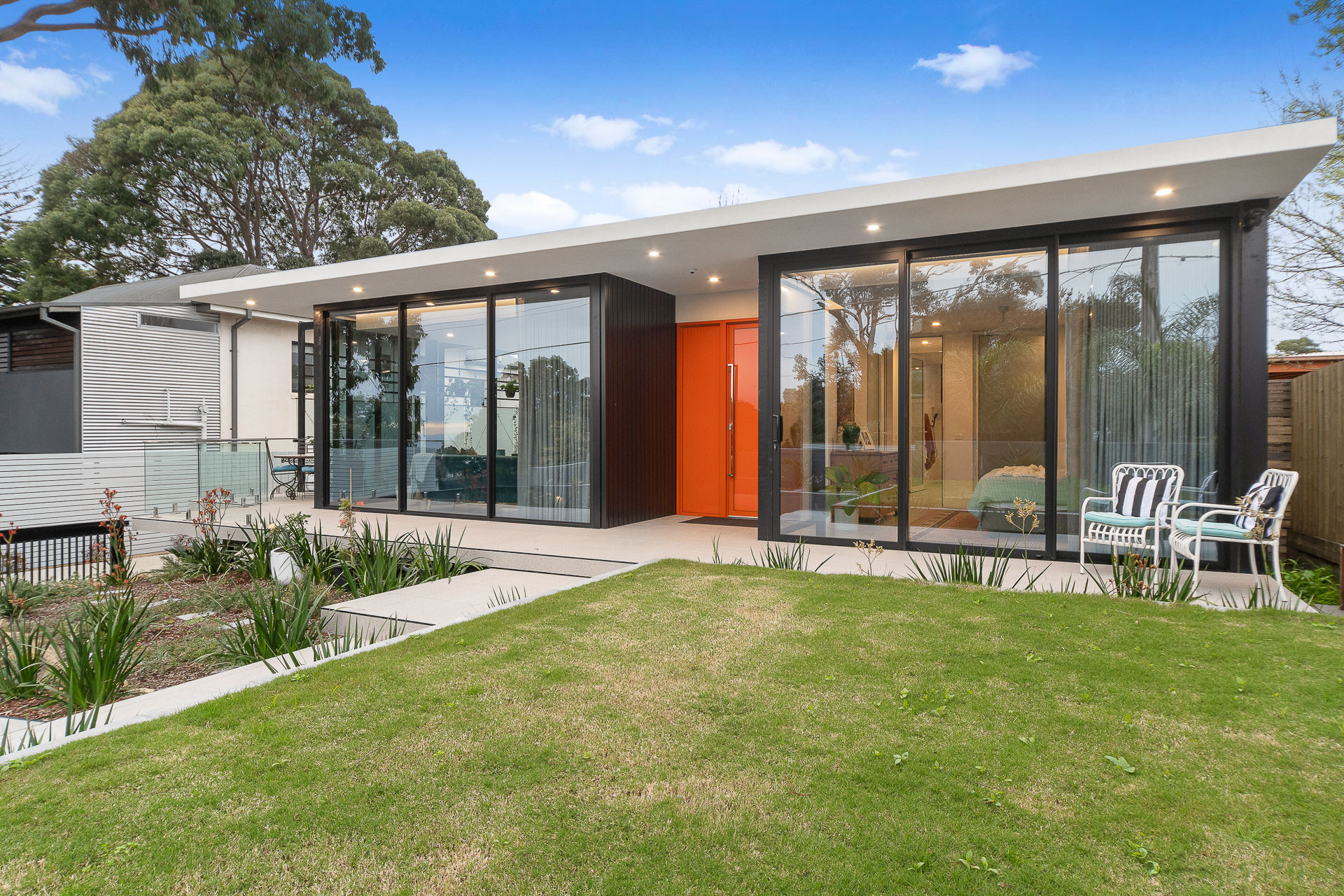

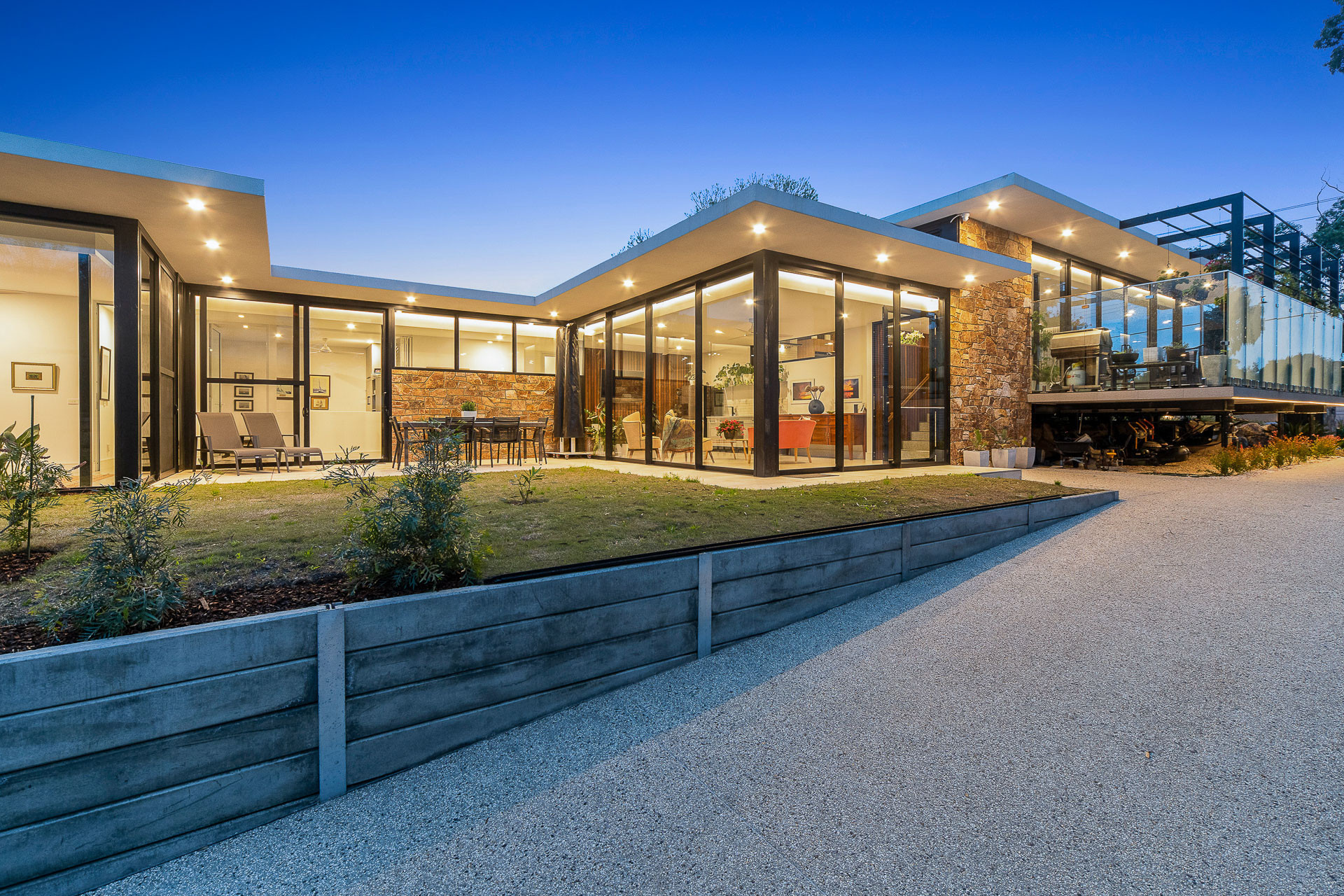

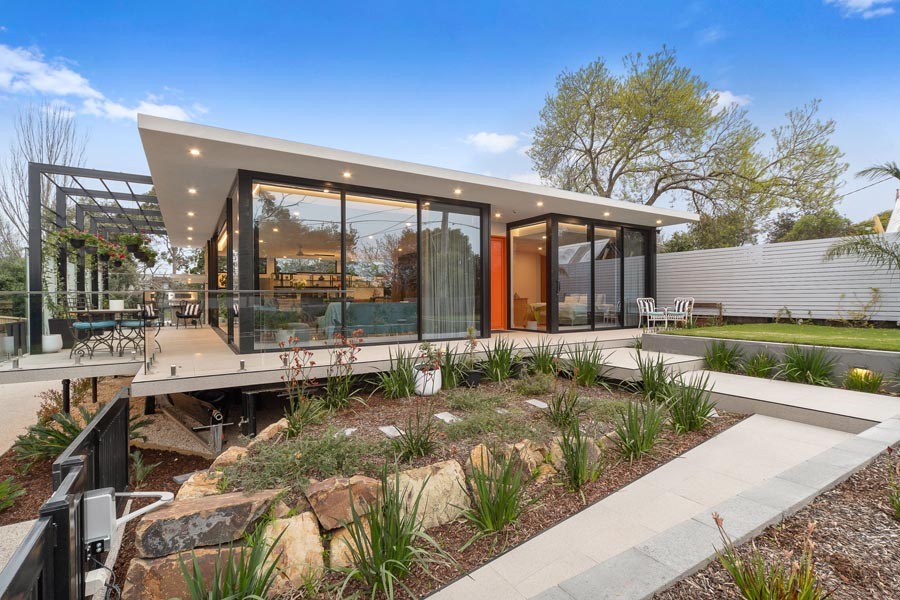

This project is located in Melbourne Australian, near the Frankston Foreshore and Frankston CBD, The dwelling area is about 427.7 msq, the site area is about 863.8msq. The villa was designed in the style of a modern beach house with an emphasis on comfort and convenience, a 7-star energy-rated home that exemplifies modern design and environmental consciousness.

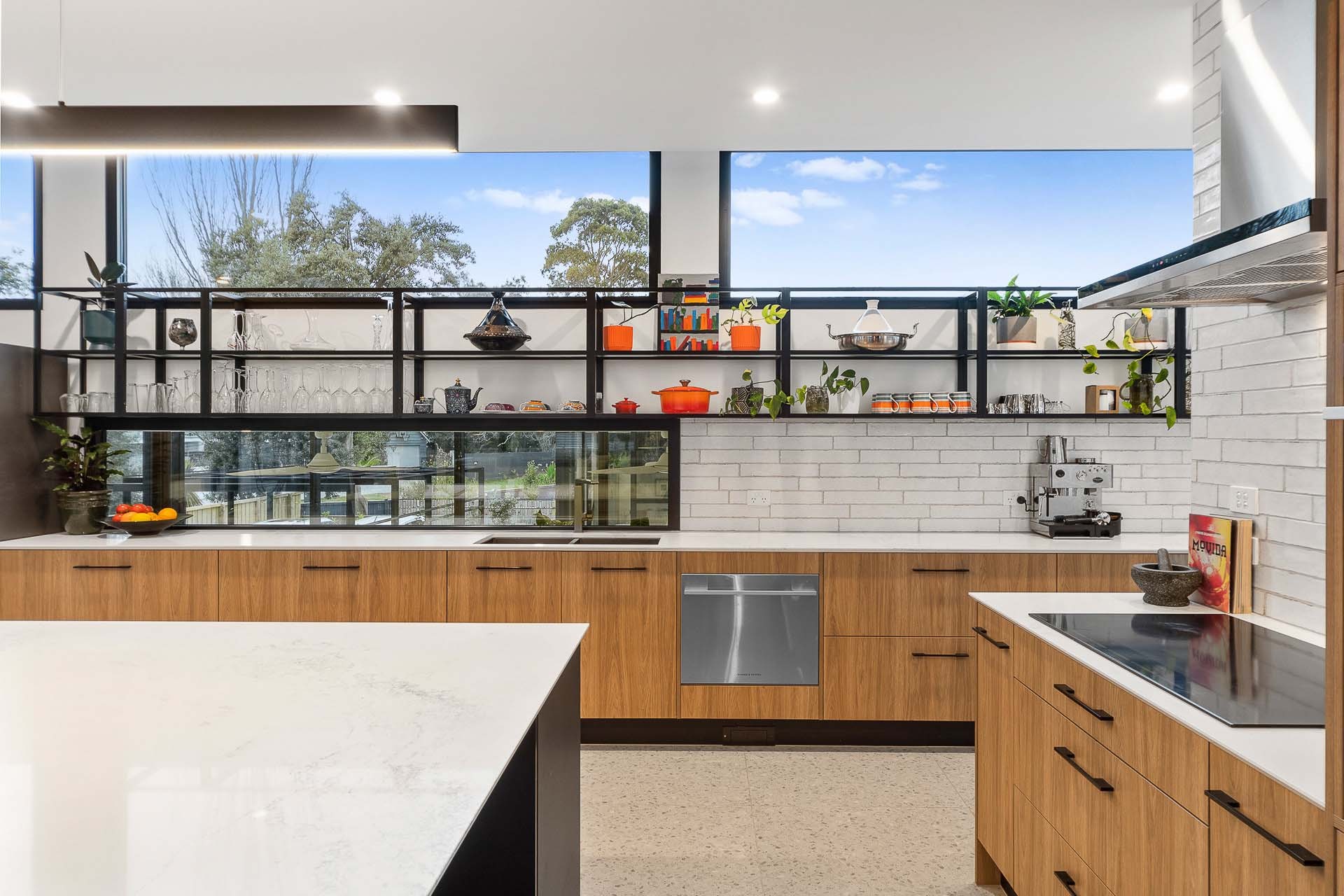

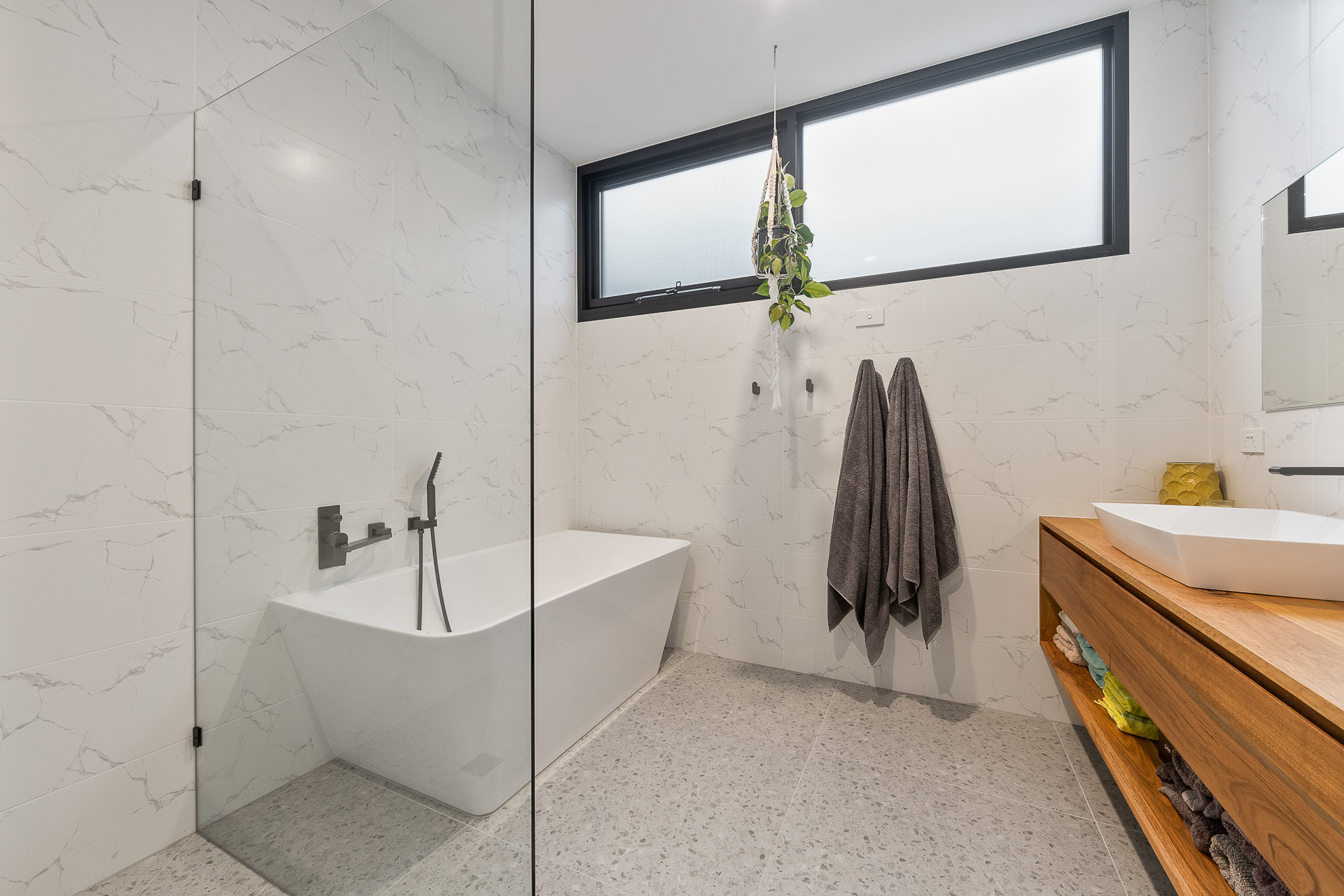

The main house is made up of four bedrooms, two bathrooms, a large open-plan kitchen and dining and living area. the outdoor spaces include a large garden area.
Optimized Windows and Doors

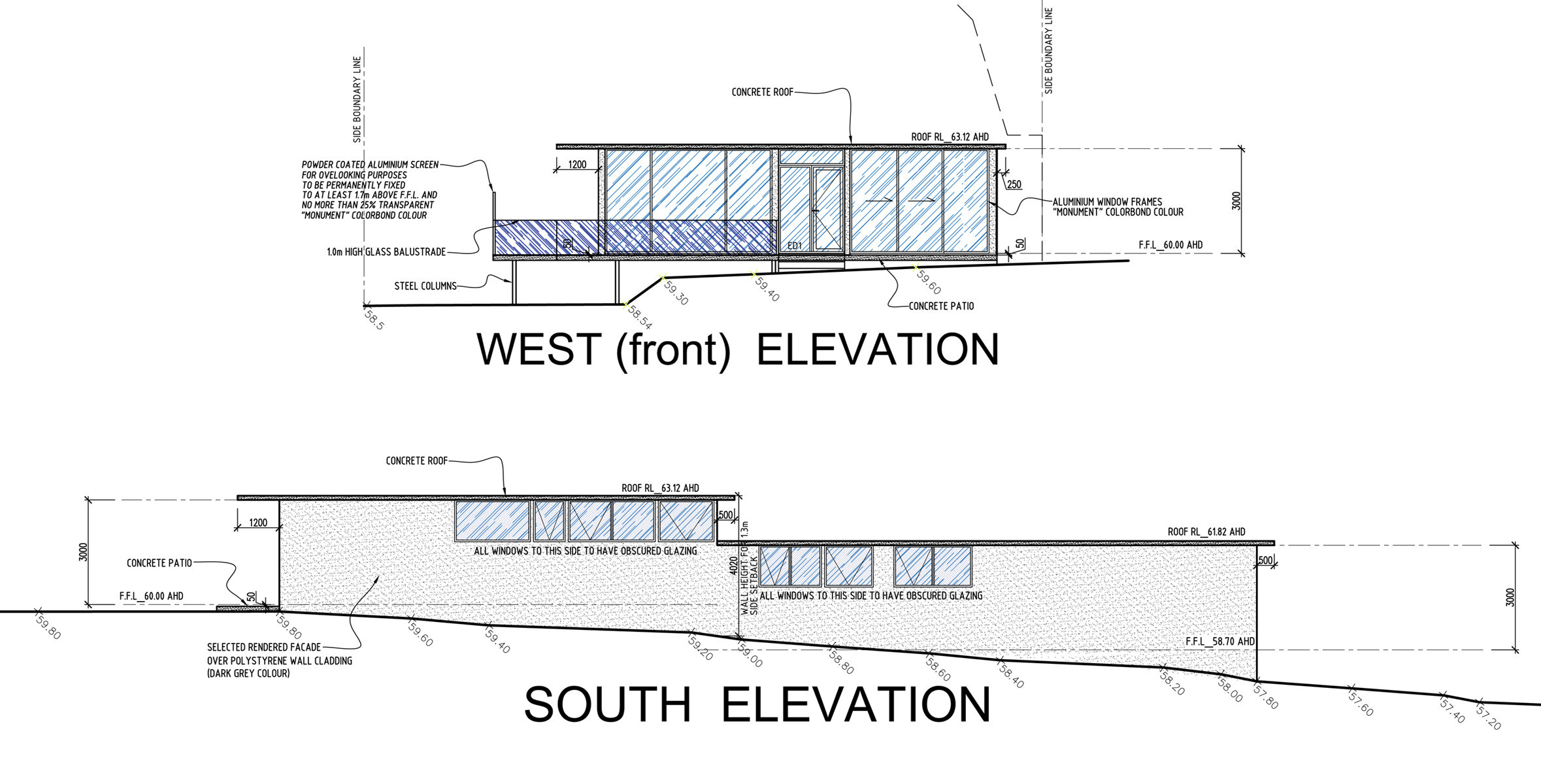

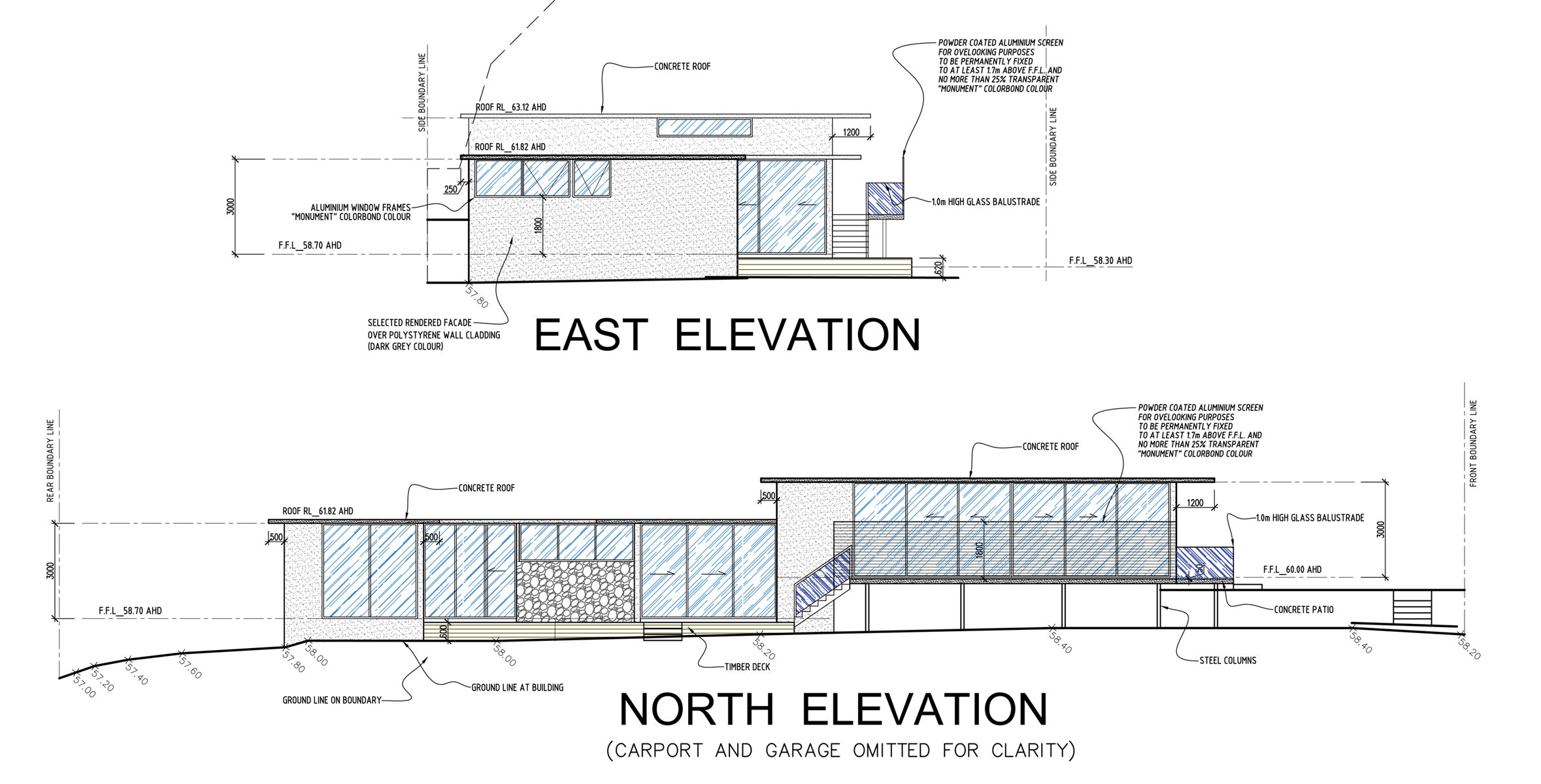

When we received the house plan and energy report from the builder, our ROPO engineering team carefully analyzed all the information and provided tailored recommendations. We advised the builder to use thermally broken aluminum double glazed windows, aluminum sliding doors, aluminum fixed windows, aluminum chain winder awning windows, aluminum hinged doors, and glass railings for the balcony. We also recommended Low-E glass and Doric Australia locking systems to enhance energy efficiency and security.
The builder later visited ROPO factory, where they discussed the project in detail with our engineers and project manager. During the visit, they gained a comprehensive understanding of ROPO's production processes and our strict quality control procedures.

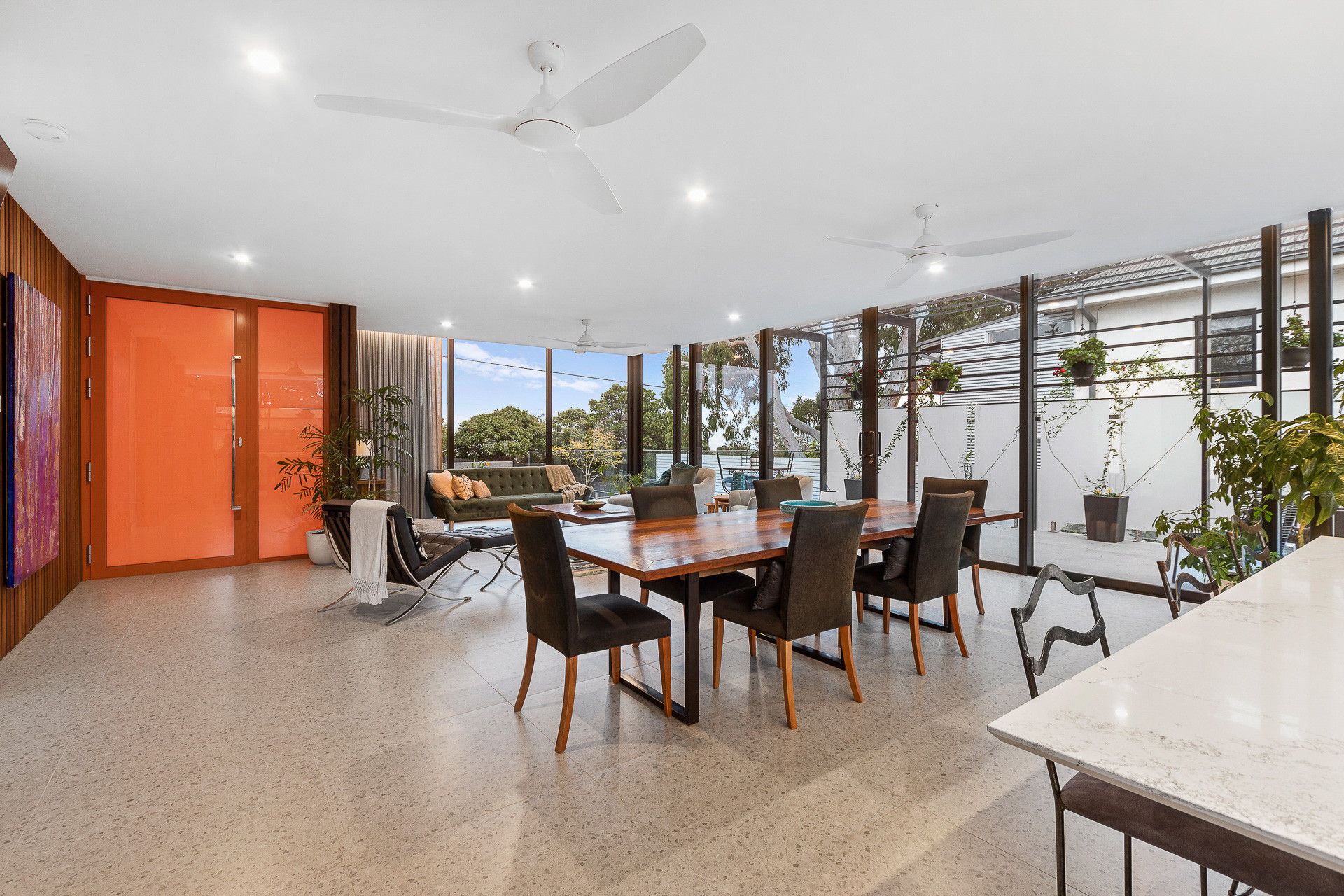

At the heart of this project's fenestration design are thermally broken aluminium windows, heavy duty aluminium sliding doors and large size aluminum fixed windows, meticulously crafted to elevate both aesthetics and functionality. providing an ideal solution for modern living. The thermally broken aluminum frames with classic black color, not just a statement of energy performance but a visual delight, contribute to the contemporary appeal of the residence.
ROPO High Performance Double Glazed Aluminum Windows and Doors: A Perfect Fit for This Project

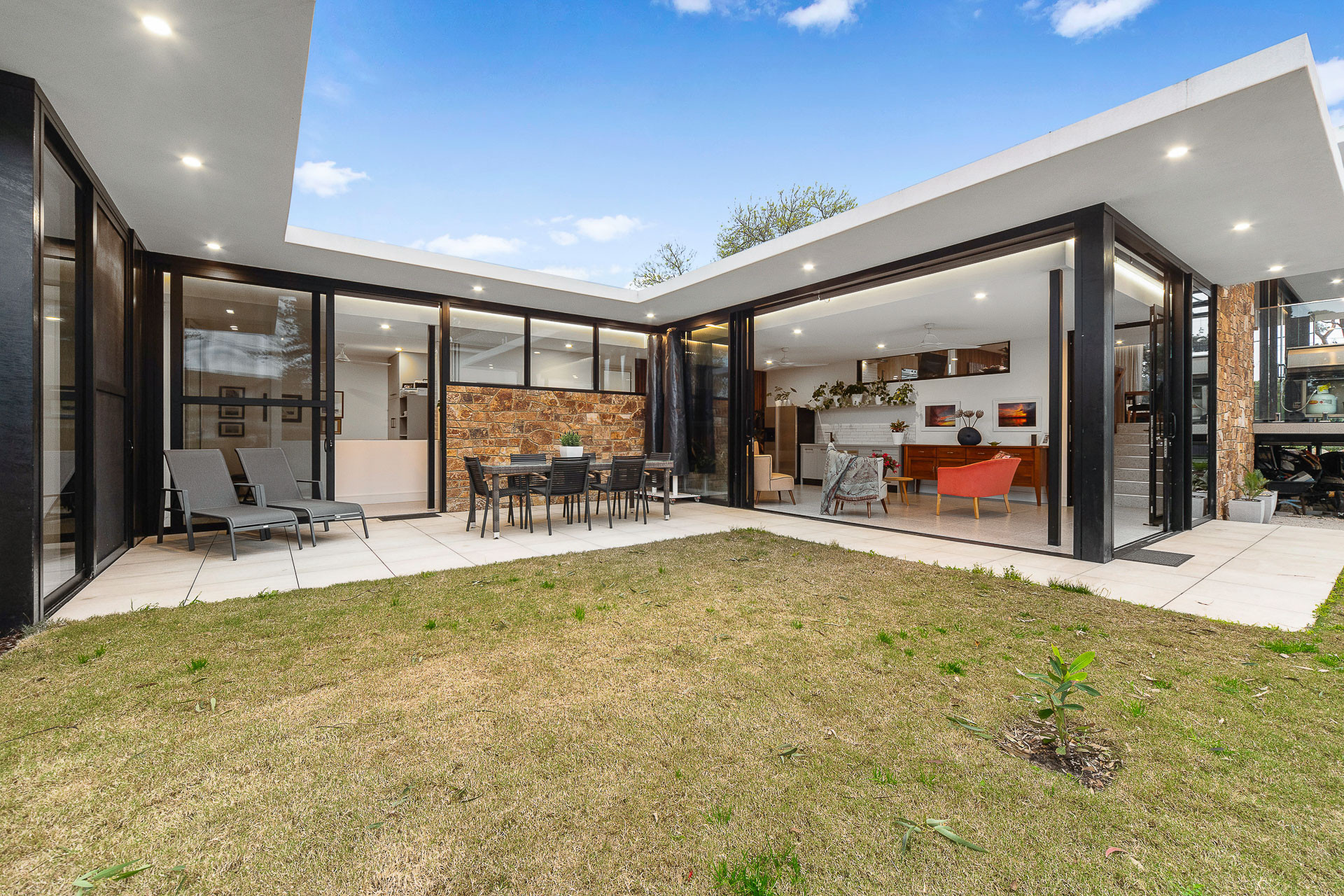

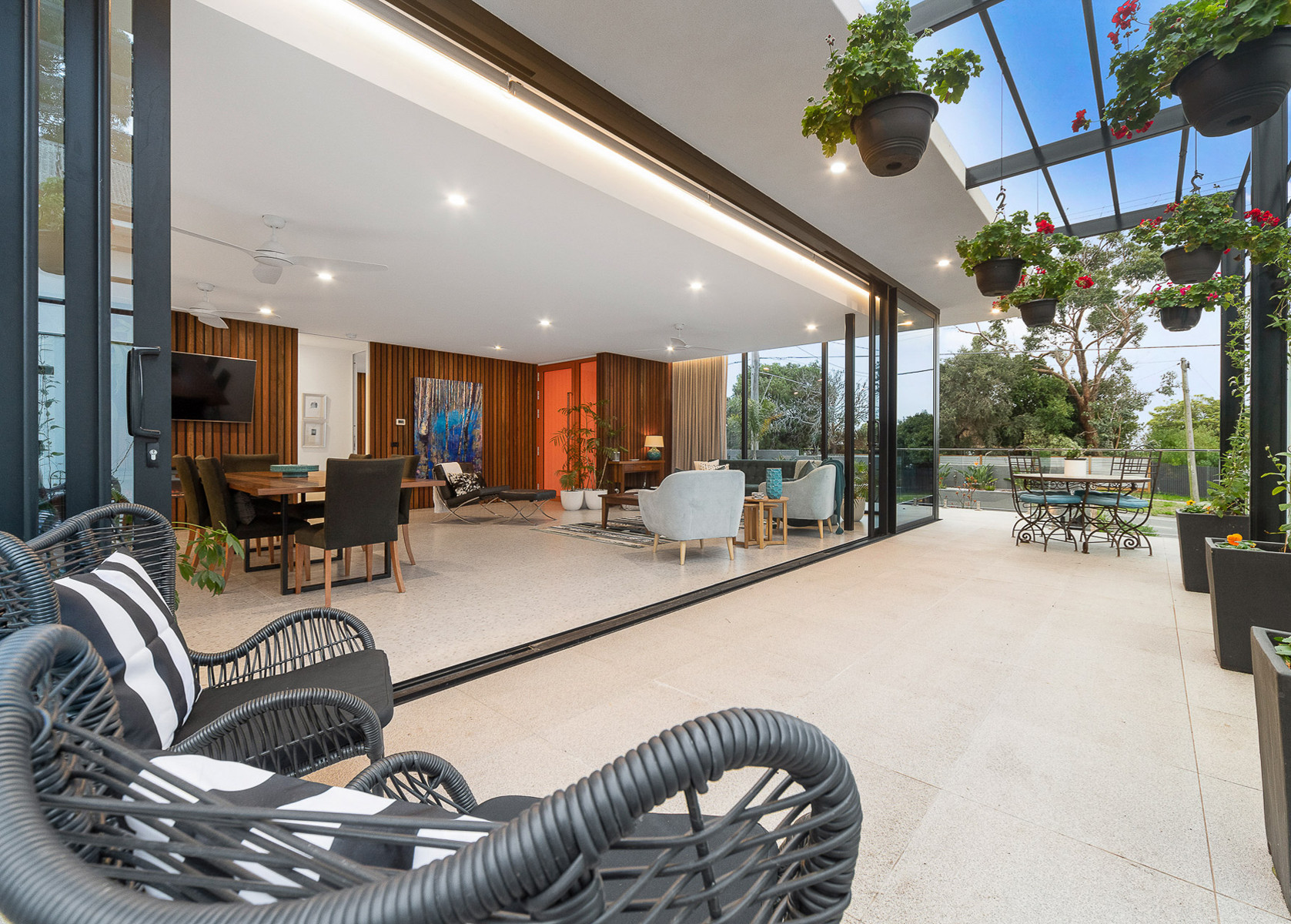

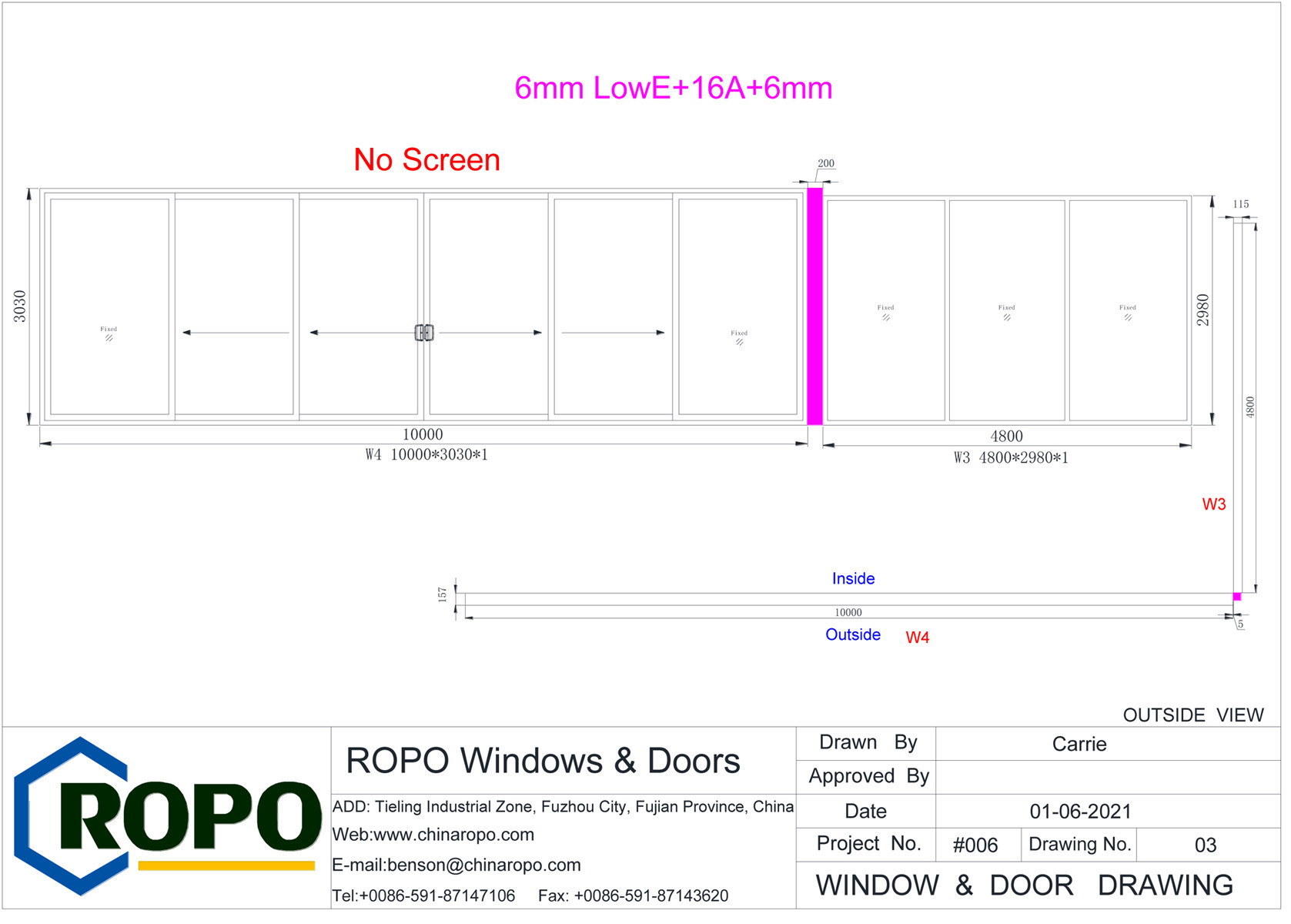

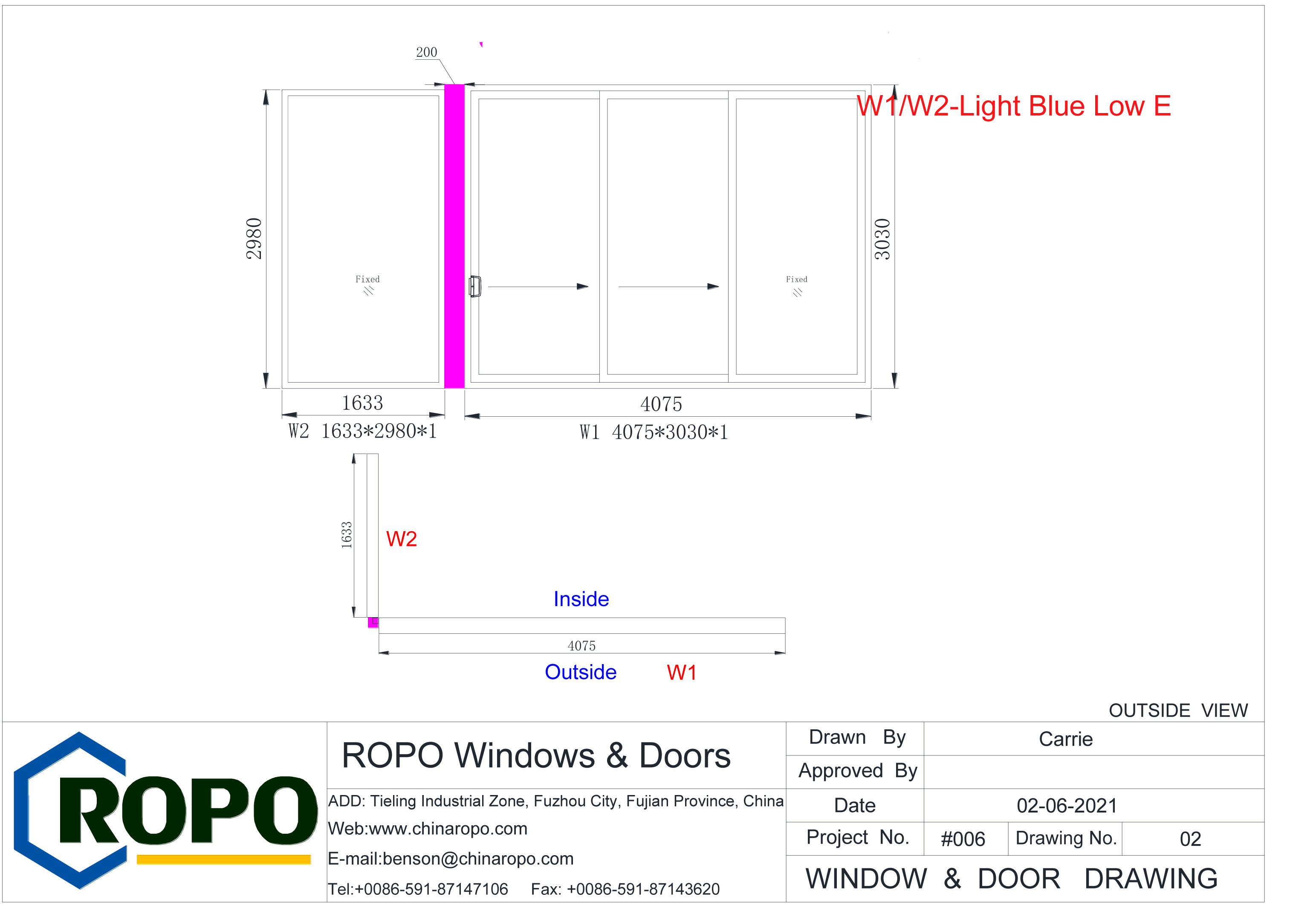

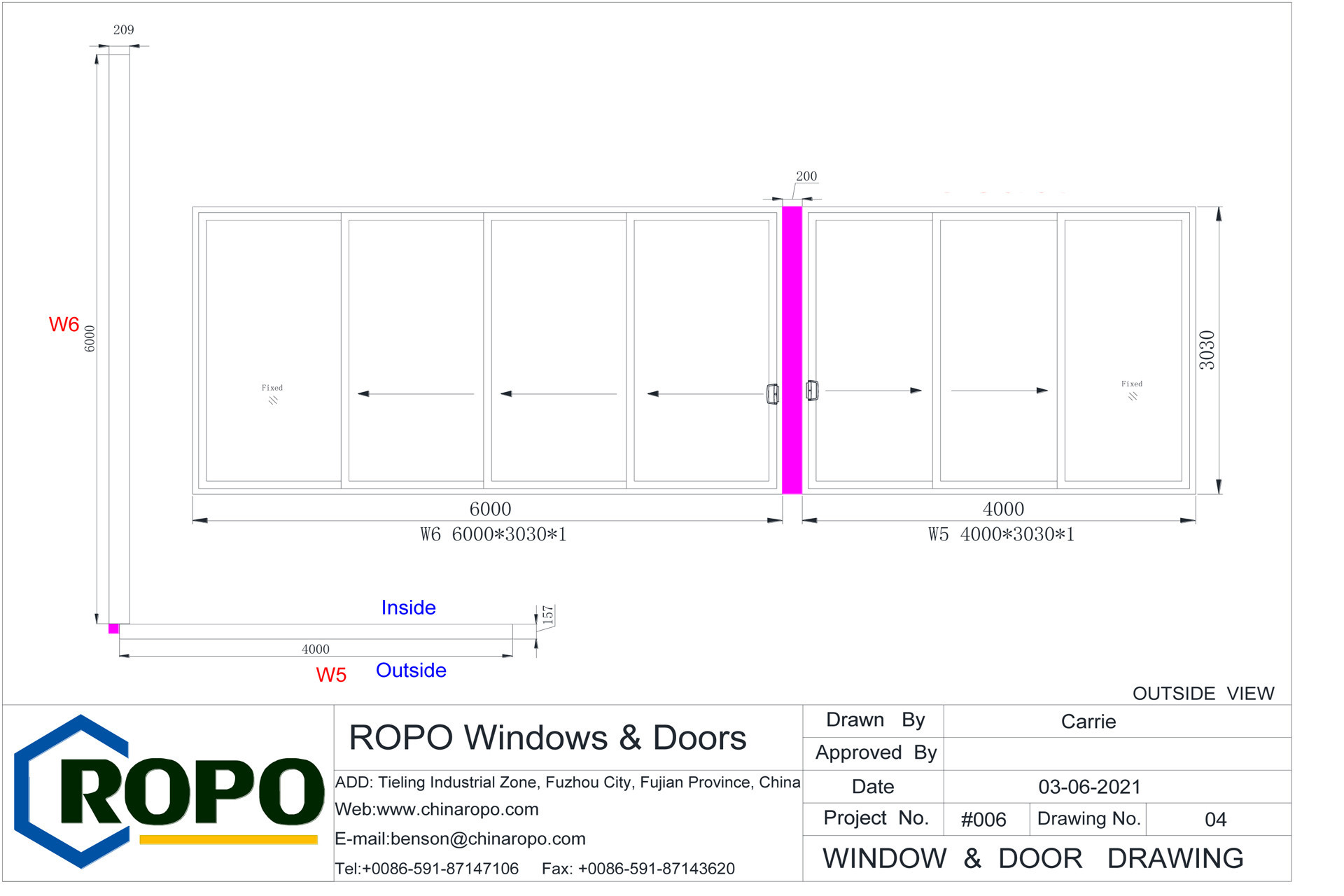

Thermally Broken Aluminium Sliding Doors: This house has many large size aluminium sliding doors, include 4075 mm X 3030 mm, 10000 mm x 3030 mm, 6000 mm x 3030 mm, 4000 mm x 3030 mm, 3040 mm x 3030 mm and 2600 mm x 3030 mm.
ROPO's aluminium sliding doors allow you to configure the arrangement of panes, by choosing how many are fixed and how many are sliding. You can choose in which direction you would prefer the door to open, as well as specifying which doors should and should not move; this allows you to increase or decrease the potential ventilation and opening space at your leisure.

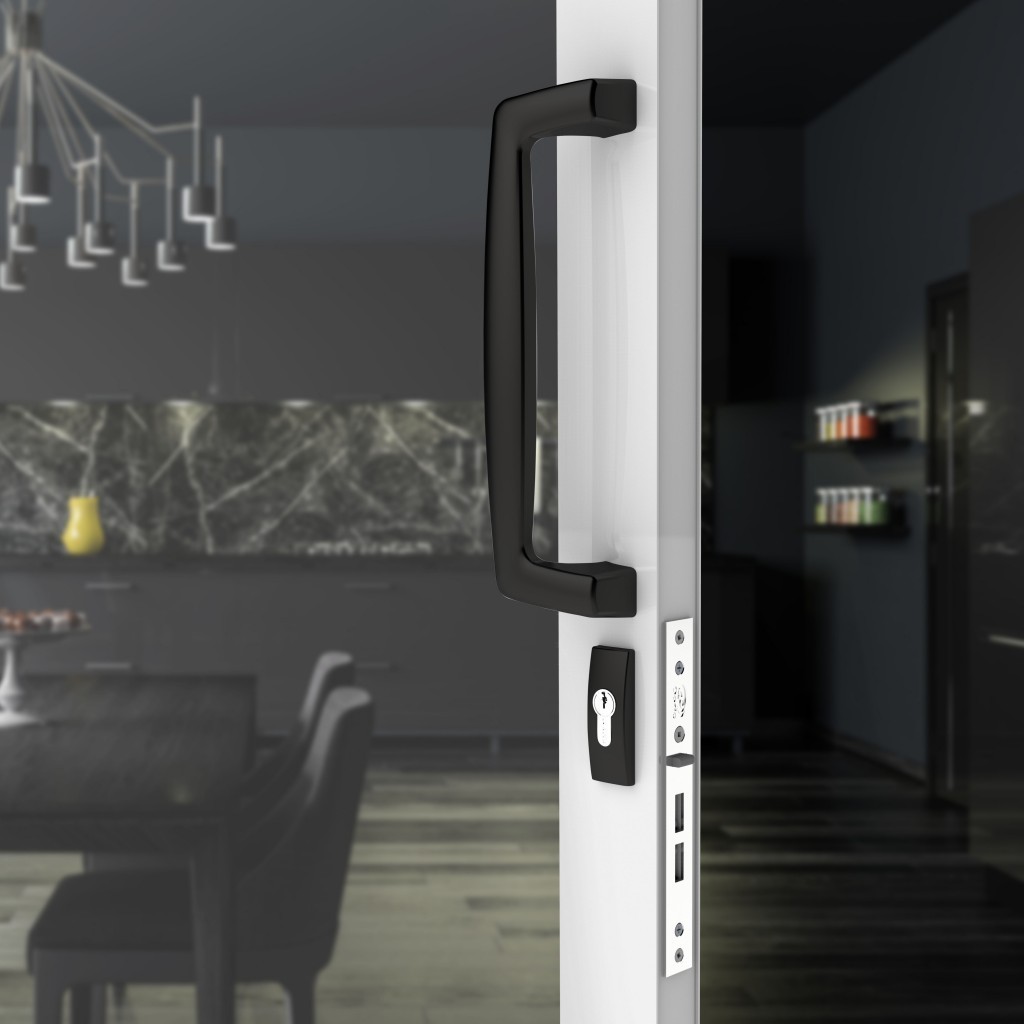

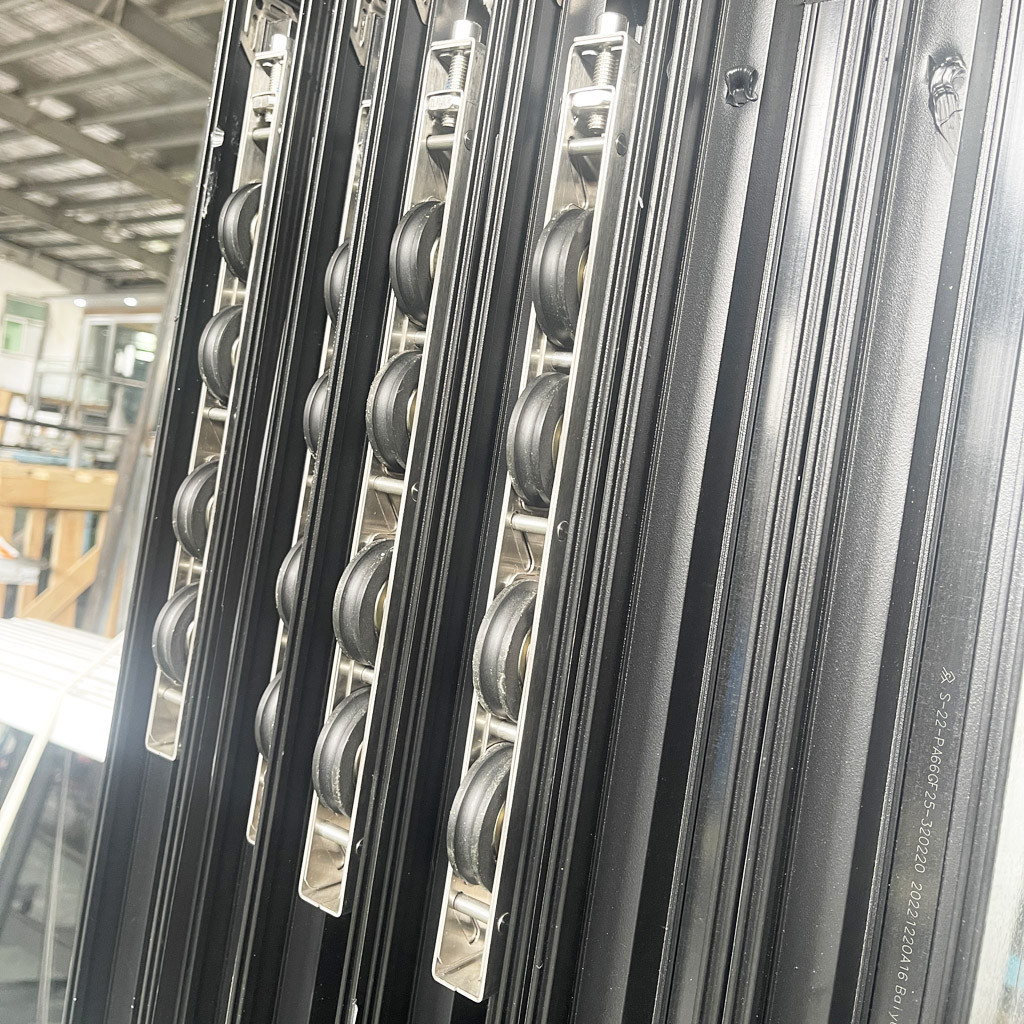

In this house, we use Doric Australia DN194 locking system and heavy duty door wheels.

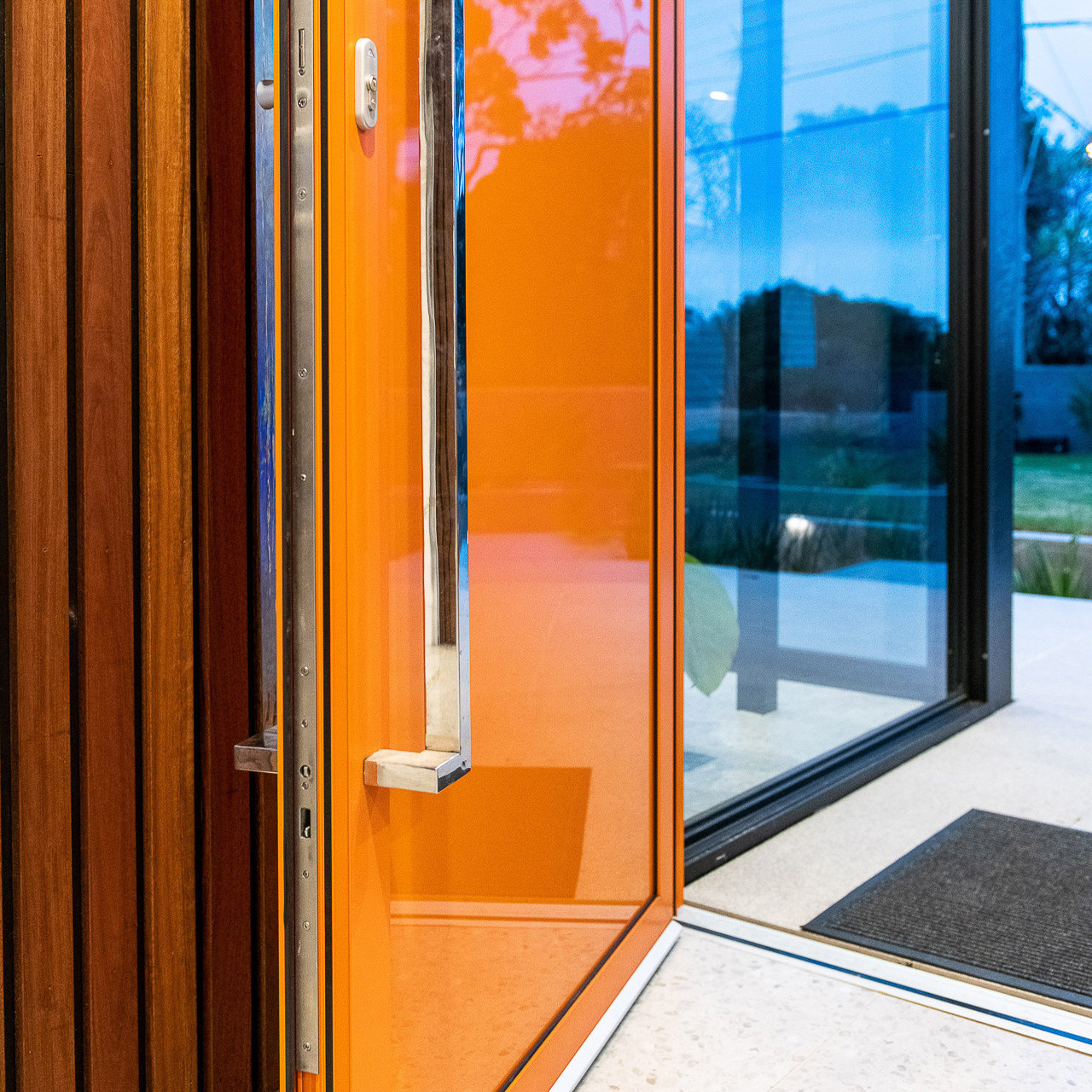

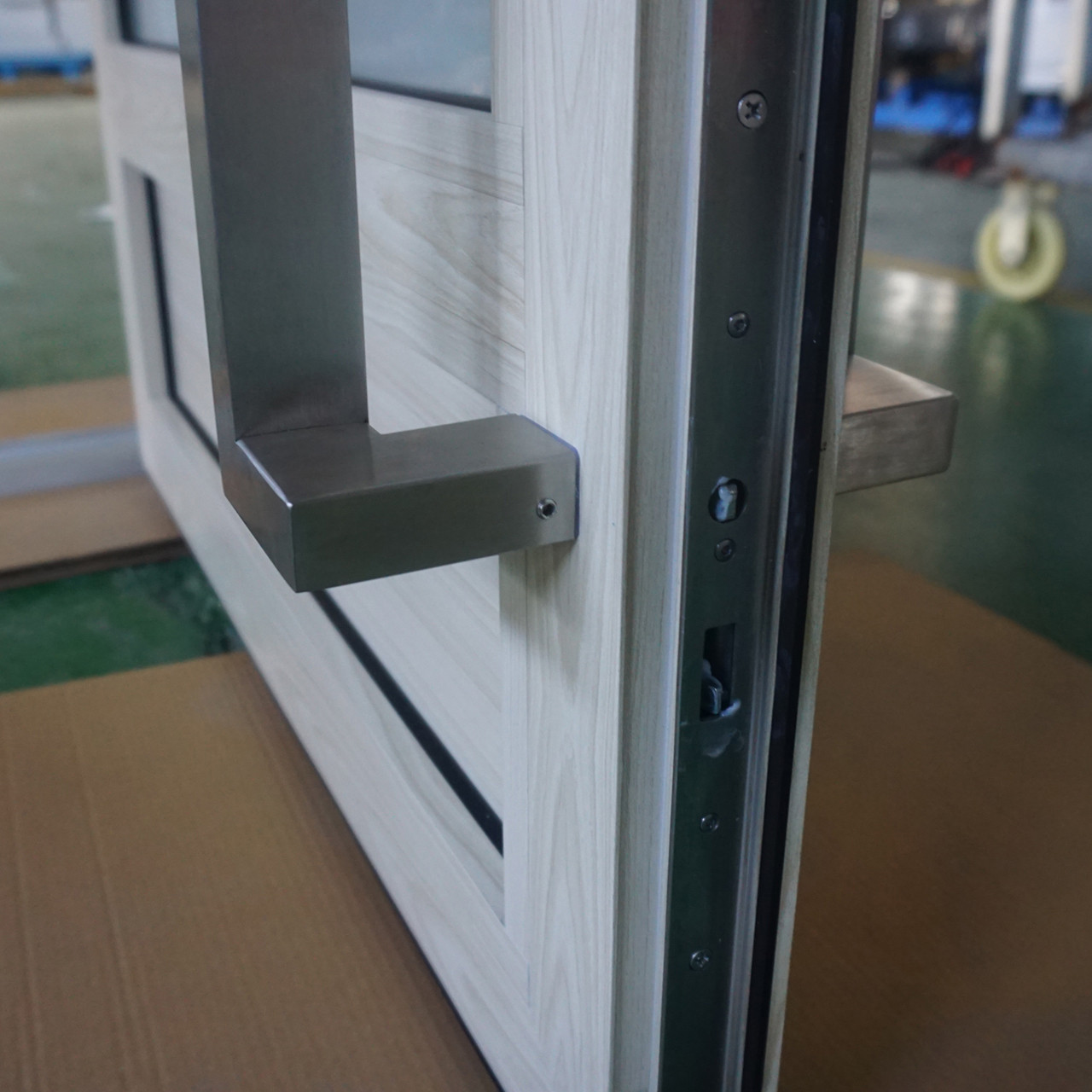

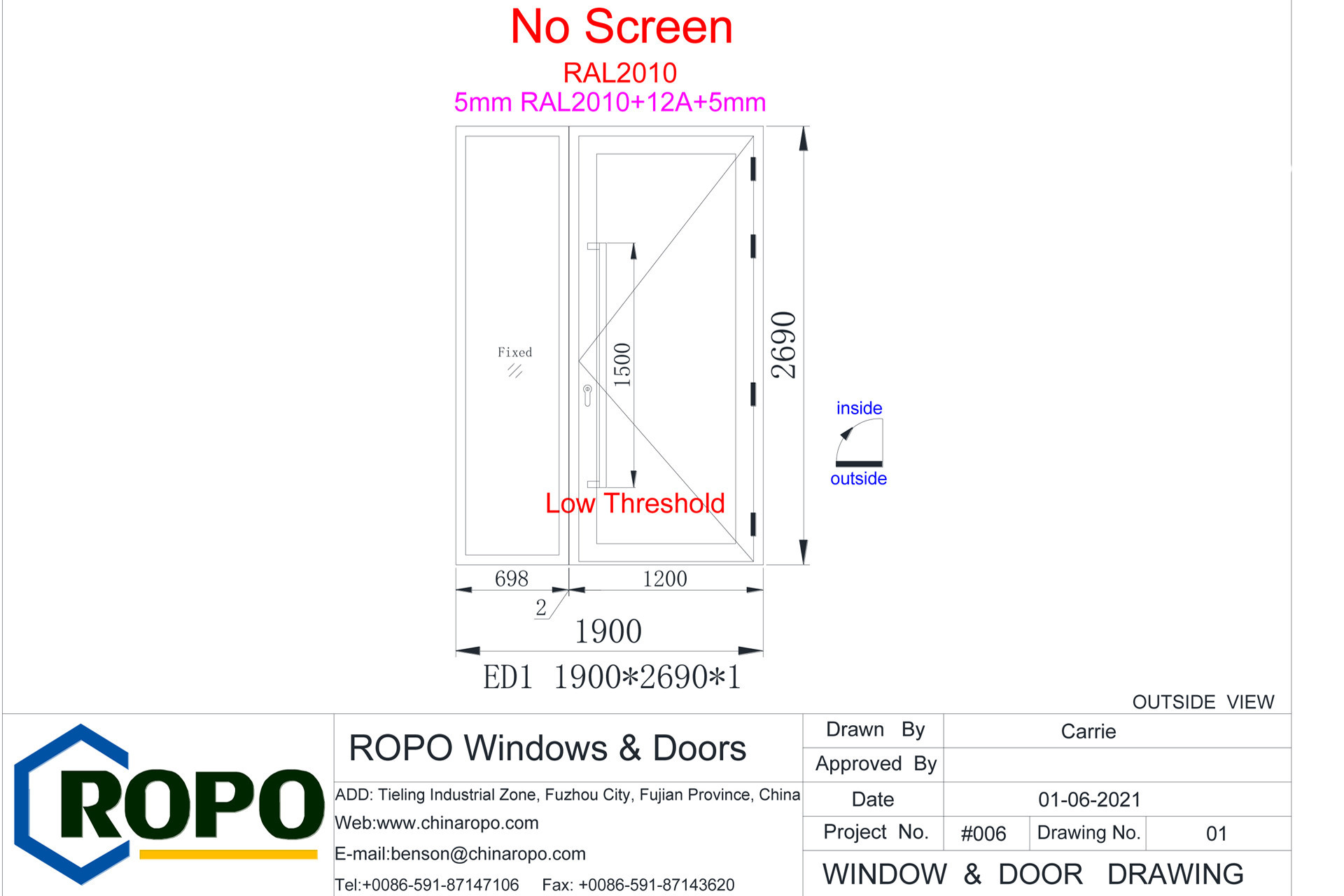

Entry Doors: This house has a large size entry door 1900 mm X 2690 mm with side fixed glass, which is thermally broken aluminum frame, pull handle, multipoint locking system, and colored glass with RAL2010 at outside.
The ROPO aluminum front doors is the most versatile in the range, making it ideal for a myriad of applications around your home. Whether your looking to make a grand statement at the front of your home, or looking for a robust door solution where you have limited overhead protection, the ROPO Aluminum Hinge Doors is a available in a wide range of sizes and configurations to suit your homes style.

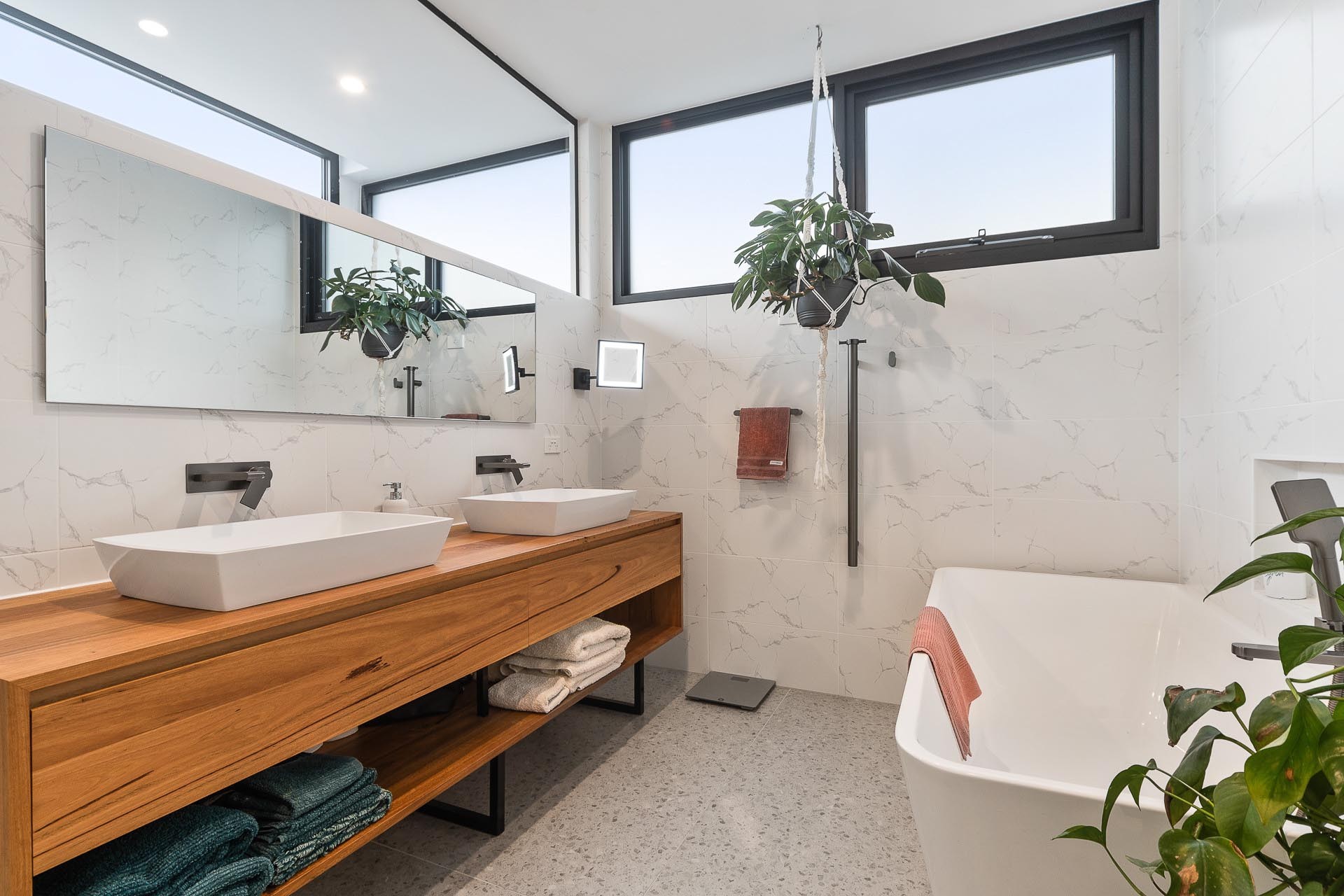

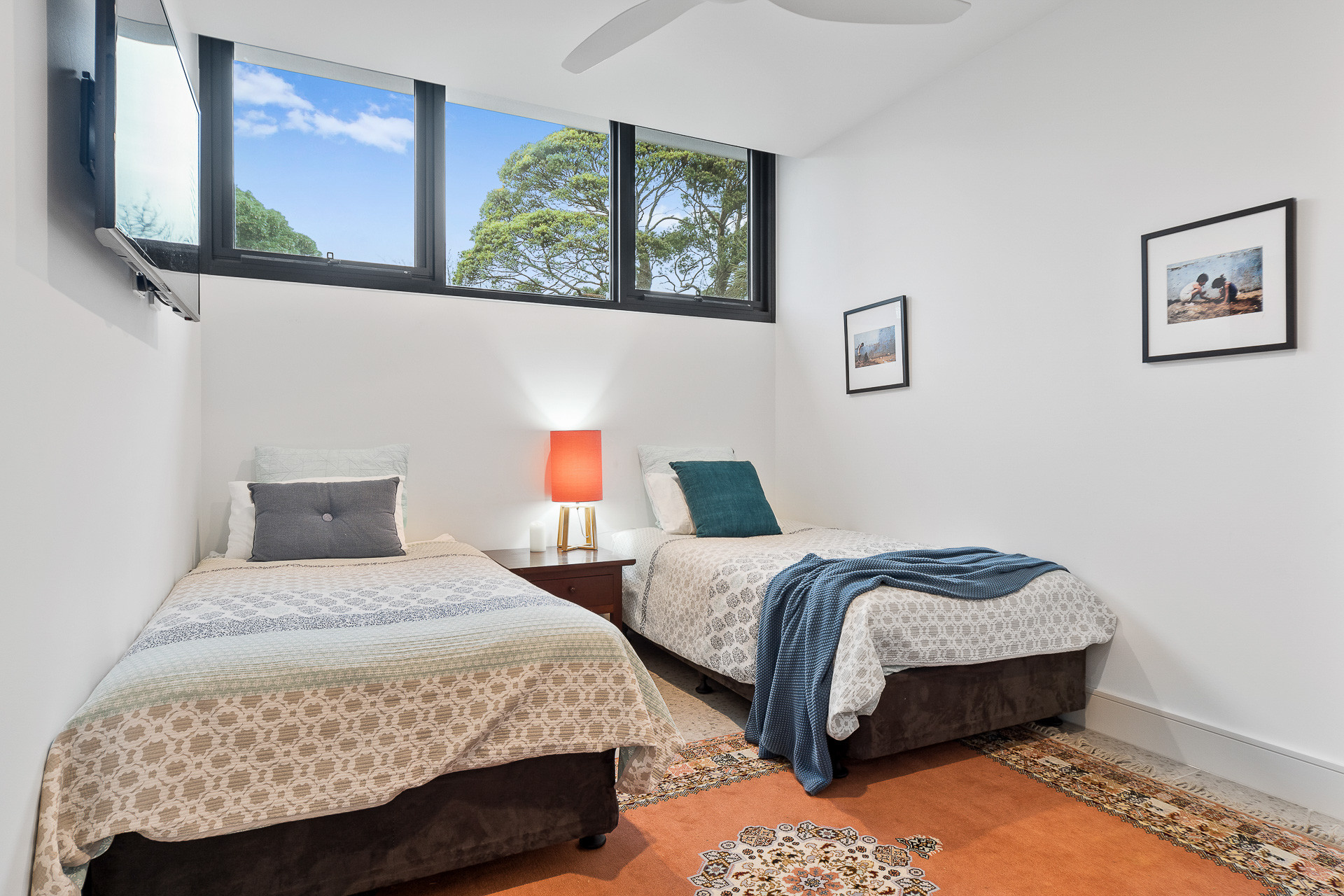

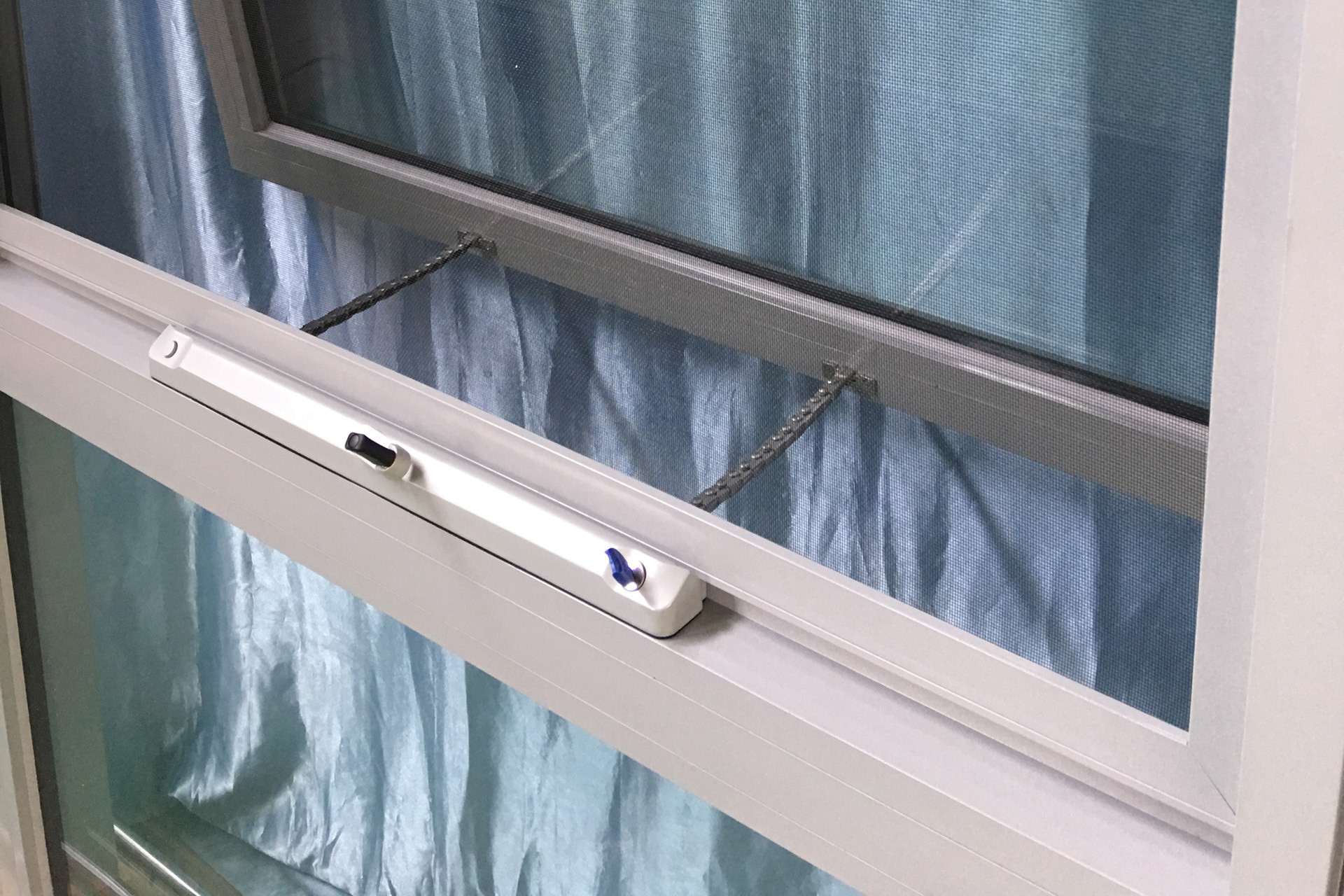

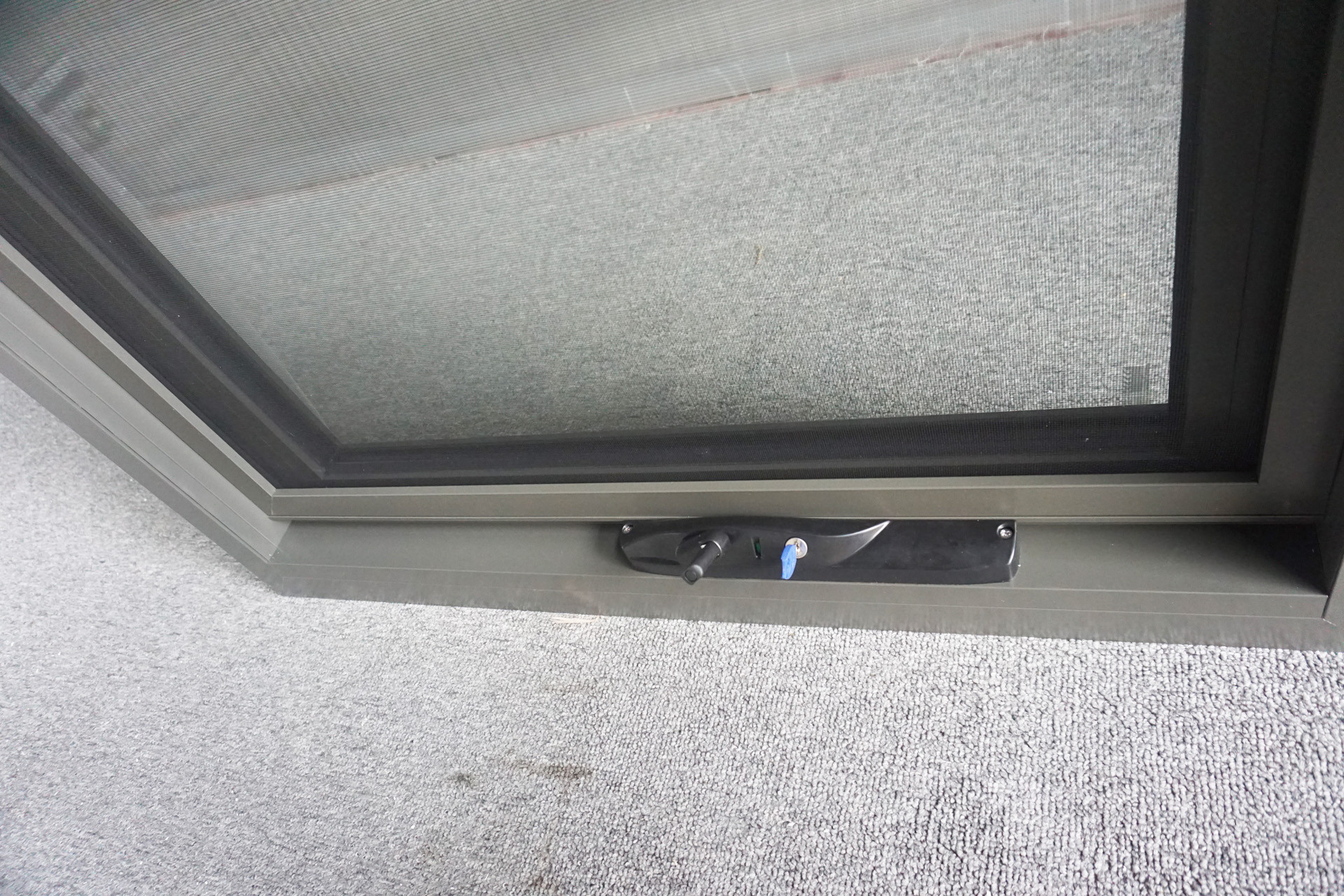

Aluminum Awning Windows: This house has many aluminum awning windows, we use Doric Australia chain wider and stainless steel 304 friction hinge, thermally broken aluminum frame with double low e glass.
ROPO's aluminium awning windows are both stylish and durable, offering the benefits of added aesthetics and ventilation. Hinged from the top and opening at the bottom, awning windows allow for ventilation in all weather conditions through a casement style that promotes improved airflow.
Achieving a 7-Star Energy Rating with ROPO Windows and Doors
A 7-star energy rating in Australia signifies a high level of energy efficiency, meaning the home requires minimal energy for heating and cooling. Achieving this standard involves thoughtful planning and precision across every component of the building envelope—including insulation, construction materials, and especially the performance of windows and doors.
At ROPO, we understand the critical role that windows and doors play in a home's overall energy performance. That's why we deliver aluminium windows and doors designed to meet and exceed Australia's energy efficiency requirements.
This home features ROPO's high-performance double glazed windows and doors, designed in accordance with Australian standards and certified under the Window Energy Rating Scheme (WERS). Each integrated glazing unit consists of double glazing with Low-E glass and argon gas, providing superior thermal and acoustic insulation.
We use top-tier thermal break aluminum profiles with an extrusion thickness ranging from 1.6 mm to 3.0 mm, ensuring excellent durability and strength. A high-quality polyamide (PA66, also known as Nylon 66) thermal break is embedded between the aluminum profiles to effectively prevent heat transfer between indoor and outdoor environments, enhancing energy efficiency all year round.
Aluminium Sliding Doors
Window ID: ROP-028-007
U Value: 2.60
SHGC: 0.34
Aluminum Awning Windows
Window ID: ROP-019-007
U Value: 3.00
SHGC: 0.32
Aluminum Fixed Windows
Window ID: ROP-022-007
U Value: 2.60
SHGC: 0.41
At ROPO, We Make Improving Your Home Simple
Your home is an expression of your personality, and customization is the key to making it uniquely yours. Our professional design service enables modifications to suit your unique preferences, including specialty shape windows that add a distinctive touch to your home. With a plethora of RAL and Colobond color options, you have the flexibility to choose a palette that resonates with your style. For those desiring more than the conventional, ROPO stands ready to turn your vision into reality.
